570513

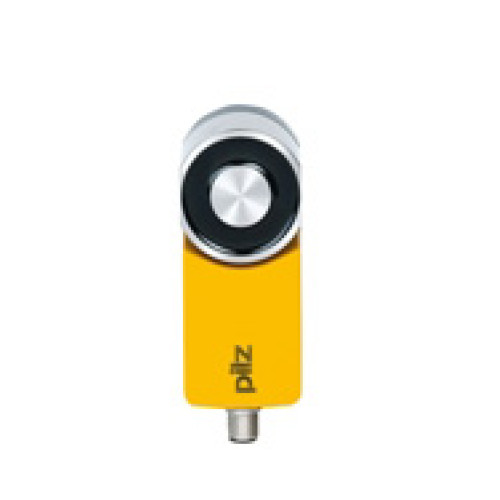

Magnetic safety gate system for applications up to SIL3/PL e/Cat4. Magnetic holding force 500N (process protection). Coding: coded

Manufacturer's No: PSEN sl-0.5n 1.1 1switch     Manufacturer: Pilz
Magnetic safety gate system for applications up to SIL3/PL e/Cat4. Magnetic holding force 500N (process protection). Coding: coded, 5-pin M12 connector, 4 LEDs, IP67, package contents = 1 sensor witho

Availability Back Order

£327.61
  • Magnetic safety gate system for applications up to SIL3/PL e/Cat4
  • Magnetic holding force: 500N (process protection)
  • Coding: coded
  • Connector: 5-pin M12
  • LEDs: 4
  • IP rating: IP67
  • Package contents: 1 sensor without actuator


Product

Manufacturer Material ID -
PSEN sl-0.5n 1.1 1switch
Net Weight -
0.63kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
UNSPSC -
39122216

Technical Specification

Mounting method -
Surface mounting
Width -
52 Millimetre
Height -
138 Millimetre
Voltage type -
DC
Power consumption -
4.8 Watt
Suitable for wall mounting -
Construction type -
Angular
Housing material -
Aluminium
Operating voltage -
20 Volt
Gripping force -
30 Newton
With anchor plate -
Performance level acc. to EN ISO 13849-1 -
Level e
SIL according to EN 62061 -
3
Pilz

Availability Back Order

£327.61
