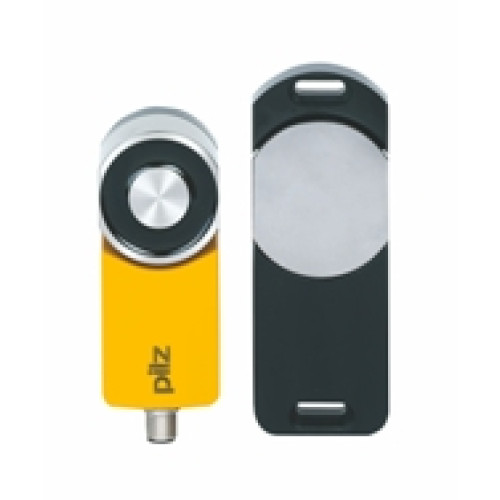

Magnetic safety gate system for applications up to SIL3/PL e/Cat4. Magnetic holding force 500N (process protection). Cod

Manufacturer's No: PSEN sl-0.5p 4.1 / PSEN sl-0.5 1unit     Manufacturer: Pilz
Magnetic safety gate system for applications up to SIL3/PL e/Cat4. Magnetic holding force 500N (process protection). Cod

Availability On Request

POA
  • Safety gate system for applications up to SIL3/PLe/Cat4
  • Magnetic holding force: 500N
  • Fully coded with teach-in capability for other actuators (up to 8 times)
  • Add-on function: switches safe semiconductor outputs when gate is closed
  • 8-pin M12 connector
  • 4 LEDs for status indication
  • IP67 rated
  • Package contents: sensor with standard actuator

Accessories



Product

Manufacturer Material ID -
PSEN sl-0.5p 4.1 / PSEN sl-0.5 1unit
Net Weight -
0.98kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
UNSPSC -
39122216

Technical Specification

Housing material -
Aluminium
Ambient temperature during operating -
-25 Degrees celsius
Degree of protection (IP rating) -
IP67
Height of sensor -
122 Millimetre
Length of sensor -
44 Millimetre
Width sensor -
45 Millimetre
