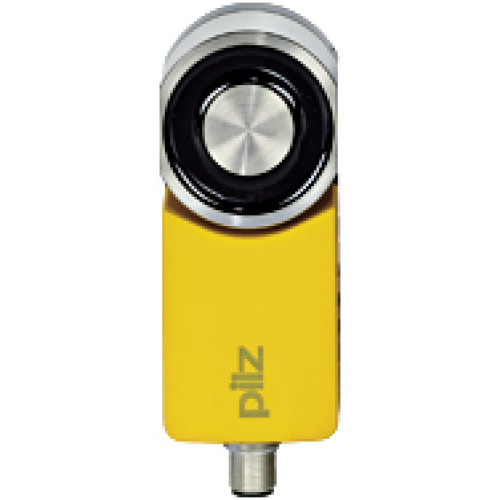

Magnetic safety gate system for applications up to SIL3/PL e/Cat4. Magnetic holding force 500N (process protection). Cod

Manufacturer's No: PSEN sl-0.5p 4.1     Manufacturer: Pilz
Magnetic safety gate system for applications up to SIL3/PL e/Cat4. Magnetic holding force 500N (process protection). Cod

Availability On Request

POA
  • Application: Suitable for applications up to SIL3/PLe/Cat4
  • Magnetic Holding Force: 500N for process protection
  • Coding: Fully coded with the ability to teach-in other actuators up to 8 times
  • Add-on Function: Safely switches semiconductor outputs when gate is closed, independently from guard locking
  • Connector: 8-pin M12 connector
  • LEDs: 4 LEDs for visual indication
  • Protection: IP67 rated
  • Package Contents: 1 sensor without actuator

Mandatory additional product

Accessories



Product

Manufacturer Material ID -
PSEN sl-0.5p 4.1
Net Weight -
0.63kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
UNSPSC -
39122216

Technical Specification

Housing material -
Aluminium
Ambient temperature during operating -
-25 Degrees celsius
Degree of protection (IP rating) -
IP67
Height of sensor -
122 Millimetre
Length of sensor -
44 Millimetre
Width sensor -
45 Millimetre
