570660

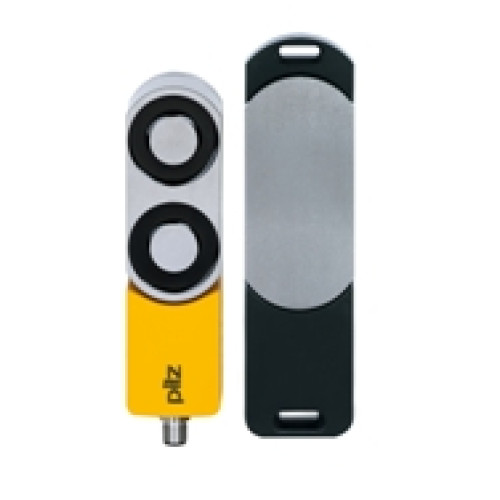

Magnetic safety gate system for applications up to SIL3/PL e/Cat4. Magnetic holding force 1000N (process protection). Coding: code

Manufacturer's No: PSEN sl-1.0p 1.1 / PSEN sl-1.0fm 1unit     Manufacturer: Pilz
Magnetic safety gate system for applications up to SIL3/PL e/Cat4. Magnetic holding force 1000N (process protection). Coding: coded, 8-pin M12 connector, 4 LEDs, IP67, package contents = sensor with f

Availability On Request

POA
  • Safety gate system for applications up to SIL3/PLe/Cat4
  • Magnetic holding force: 1000N
  • Coding: Coded
  • Connector: 8-pin M12
  • Features: 4 LEDs
  • Protection: IP67
  • Package contents: Sensor with free-moving actuator

Accessories



Product

Manufacturer Material ID -
PSEN sl-1.0p 1.1 / PSEN sl-1.0fm 1unit
Net Weight -
1.77kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
UNSPSC -
39122216

Technical Specification

Housing material -
Aluminium
Ambient temperature during operating -
-25 Degrees celsius
Degree of protection (IP rating) -
IP67
Height of sensor -
172 Millimetre
Length of sensor -
44 Millimetre
Width sensor -
45 Millimetre
