5SL43148

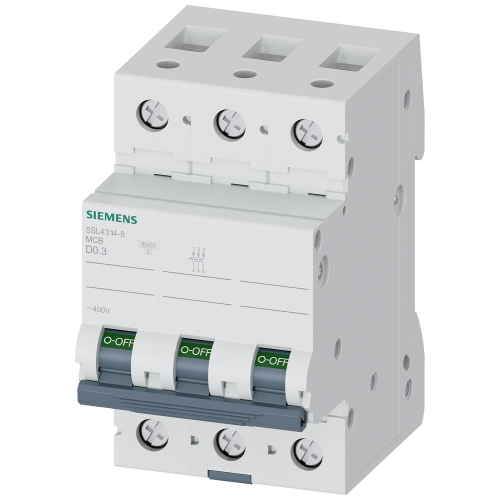

Miniature circuit breaker 400 V 10 kA, 3-pole, D, 0.3 A

Manufacturer's No: 5SL4314-8     Manufacturer: Siemens

Availability Back Order

£89.73
  • Miniature circuit breaker
  • Voltage: 400 V
  • Breaking capacity: 10 kA
  • Poles: 3
  • Type: D
  • Current rating: 0.3 A

Selectable mandatory product

Accessories

Spacer 0.5 MW

Product Code - 5TG8240
Price £4.76
Back Order
Product video
Product video


Product

Manufacturer Material ID -
5SL4314-8
Net Weight -
0.46kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
RO
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Rated insulation voltage Ui -
- Volt
Rated impulse withstand voltage Uimp -
- Kilovolt
Built-in depth -
70 Millimetre
Release characteristic -
D
Degree of protection (IP) -
IP20
Frequency -
50 Hertz
Over voltage category -
3
Degree of protection (IP rating) -
IP20
Number of protected poles -
3
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Number of poles (total) -
3
Pollution degree -
2
Rated current -
0.3 Ampere
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
10 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
10 kiloampere
Rated voltage -
400 Volt
Recess depth -
70 Millimetre
Tripping characteristic (type/curve) -
D
Voltage type -
AC
Width in number of modular spacings -
3

Availability Back Order

£89.73
