5SD74131KU02

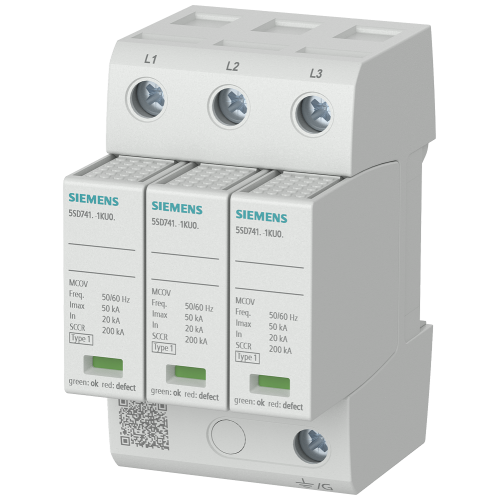

surge arrester UL, type 1 3-pole, 480Y/277V (wye) with remote signaling contact The device only has cULus certification and no CE

Manufacturer's No: 5SD7413-1KU02     Manufacturer: Siemens
surge arrester UL, type 1 3-pole, 480Y/277V (wye) with remote signaling contact The device only has cULus certification and no CE marking

Availability On Request

£609.00
  • Surge arrester UL Type 1
  • 3-pole configuration
  • Voltage rating: 480Y/277V (wye)
  • Remote signaling contact included
  • cULus certified
  • No CE marking
Product video
Product video


Product

Manufacturer Material ID -
5SD7413-1KU02
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85363090
Country of Origin -
DE
UNSPSC -
39121618

Technical Specification

Construction size -
3 modular spacing
Degree of protection (IP rating) -
IP20
Max. conductor cross section flexible (fine-strand) -
25 Square millimetre
Max. conductor cross section solid (solid, stranded) -
25 Square millimetre
Max. discharge surge current (8/20) -
50 kiloampere
Nominal discharge surge current 8/20 µs (In) -
50 kiloampere
Nominal voltage AC -
277 Volt
Number of conductors (without earthing) -
3
With remote signalling contact -
