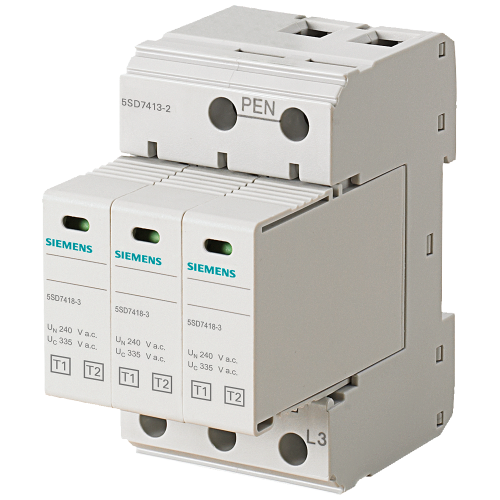

5SD74132

Lightning conductor T1/T2, UN 240/400 V, UC 335 V A.C., pluggable protective modules, 3+0 circuit (TN-C), Width 54 mm

Manufacturer's No: 5SD7413-2     Manufacturer: Siemens
Lightning conductor T1/T2, UN 240/400 V, UC 335 V A.C., pluggable protective modules, 3+0 circuit (TN-C), Width 54 mm

Availability Back Order

£413.75
  • Lightning conductor T1/T2
  • UN voltage rating: 240/400 V
  • UC voltage rating: 335 V A.C.
  • Pluggable protective modules
  • 3+0 circuit (TN-C)
  • Width: 54 mm

Component part

Product video
Product video


Product

Manufacturer Material ID -
5SD7413-2
Net Weight -
0.56kg

Additional Product Information

Commodity Code -
85363090
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
RoHs Compliance -
Yes
UNSPSC -
39122330

Technical Specification

Nominal voltage DC -
- Volt
Max. continuous voltage DC -
- Volt
Max. PV-voltage -
- Volt
Voltage protection level N-PE -
- Kilovolt
Mounting method -
DIN rail (top hat rail) 35 mm
Max. continuous voltage AC -
335 Volt
Nominal discharge surge current (8/20) -
50 kiloampere
Category type 2 -
Degree of protection (IP) -
IP20
System configuration TN-C -
Construction size -
3 modular spacing
Degree of protection (IP rating) -
IP20
Max. conductor cross section flexible (fine-strand) -
25 Square millimetre
Max. conductor cross section solid (solid, stranded) -
35 Square millimetre
Max. discharge surge current (8/20) -
50 kiloampere
Max. overcurrent protection device, parallel connection (fuse) -
160 Ampere
Max. overcurrent protection device, series connection (fuse) -
80 Ampere
Max. voltage (Uc) -
335 Volt
Nominal discharge surge current 8/20 µs (In) -
50 kiloampere
Nominal voltage AC -
230 Volt
Number of conductors (without earthing) -
3
Short-circuit breaking capacity (Isccr) -
25 kiloampere
Signalling at the device -
Optic
Type / Test class 2 -
Voltage protection level -
1.2 Kilovolt
Voltage protection level L-N -
1.6 Kilovolt

Availability Back Order

£413.75
