5SD74143

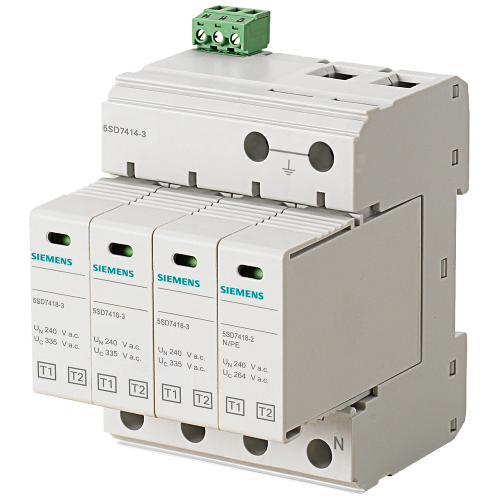

Lightning conductor T1/T2, UN 240/400 V, UC 335/264 V A.C., pluggable protective modules, 3+1 circui

Manufacturer's No: 5SD7414-3     Manufacturer: Siemens
Lightning conductor T1/T2, UN 240/400 V, UC 335/264 V A.C., pluggable protective modules, 3+1 circui

Availability Back Order

£625.81
  • Lightning conductor T1/T2
  • Voltage: UN 240/400 V
  • Voltage Protection Level: UC 335/264 V A.C.
  • Pluggable protective modules
  • 3+1 circuit (TN-S, TT)
  • Width: 72 mm
  • Remote signaling available

Component part

Product video
Product video


Product

Manufacturer Material ID -
5SD7414-3
Net Weight -
0.68kg

Additional Product Information

Commodity Code -
85363090
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122330

Technical Specification

Voltage protection level -
- Kilovolt
Nominal discharge surge current (8/20) -
- kiloampere
Nominal voltage DC -
- Volt
Max. continuous voltage DC -
- Volt
Max. PV-voltage -
- Volt
Max. continuous voltage AC -
335 Volt
Category type 2 -
Degree of protection (IP) -
IP20
Mounting method -
DIN rail (top hat rail) 35 mm
Signalling at the device -
Optic
Construction size -
4 modular spacing
Degree of protection (IP rating) -
IP20
Max. conductor cross section flexible (fine-strand) -
25 Square millimetre
Max. conductor cross section solid (solid, stranded) -
35 Square millimetre
Max. discharge surge current (8/20) -
50 kiloampere
Max. overcurrent protection device, parallel connection (fuse) -
160 Ampere
Max. overcurrent protection device, series connection (fuse) -
80 Ampere
Max. voltage (Uc) -
335 Volt
Nominal voltage AC -
230 Volt
Number of conductors (without earthing) -
3
Short-circuit breaking capacity (Isccr) -
25 kiloampere
Type / Test class 2 -
Voltage protection level L-N -
1.2 Kilovolt
Voltage protection level N-PE -
1.7 Kilovolt
With remote signalling contact -
