5SD74731

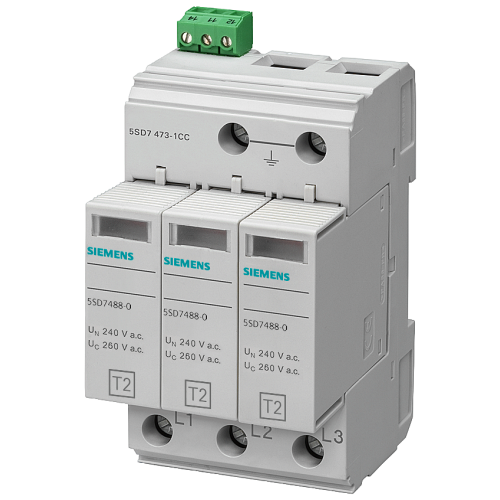

Surge arrester type 2, UC 600 V AC, protective modules, plug-in 3-pole, 3+0

Manufacturer's No: 5SD7473-1     Manufacturer: Siemens
Surge arrester type 2, UC 600 V AC, protective modules, plug-in 3-pole, 3+0

Availability Back Order

£321.79
  • Surge arrester Type 2
  • Rated voltage: 600 V AC
  • Pluggable protective modules
  • 3-pole, 3+0 circuit design
  • Suitable for IT systems without supplied N-conductor
  • Includes remote signaling contact
Product video
Product video


Product

Manufacturer Material ID -
5SD7473-1
Net Weight -
0.41kg

Additional Product Information

Commodity Code -
85363090
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39122330

Technical Specification

Nominal voltage DC -
- Volt
Voltage protection level L-N -
- Kilovolt
Max. continuous voltage DC -
- Volt
Max. PV-voltage -
- Volt
Voltage protection level N-PE -
- Kilovolt
Max. continuous voltage AC -
580 Volt
Nominal discharge surge current (8/20) -
30 kiloampere
Category type 2 -
Degree of protection (IP) -
IP20
Mounting method -
DIN rail (top hat rail) 35 mm
Signalling at the device -
Optic
Construction size -
3 modular spacing
Degree of protection (IP rating) -
IP20
Max. conductor cross section flexible (fine-strand) -
25 Square millimetre
Max. conductor cross section solid (solid, stranded) -
35 Square millimetre
Max. discharge surge current (8/20) -
30 kiloampere
Max. overcurrent protection device, parallel connection (fuse) -
125 Ampere
Max. overcurrent protection device, series connection (fuse) -
80 Ampere
Max. voltage (Uc) -
580 Volt
Nominal discharge surge current 8/20 µs (In) -
30 kiloampere
Nominal voltage AC -
690 Volt
Number of conductors (without earthing) -
3
Short-circuit breaking capacity (Isccr) -
25 kiloampere
Type / Test class 2 -
Voltage protection level -
2.5 Kilovolt
With remote signalling contact -

Availability Back Order

£321.79
