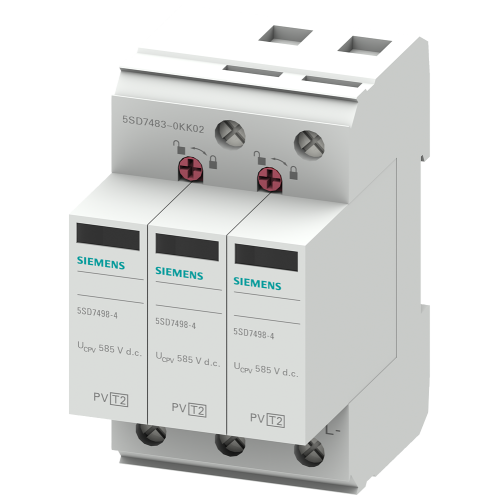

5SD74830KK02

Surge arrester, type 2, UC 1000 V DC, Imax 40 kA short-circuit strength 2000 A

Manufacturer's No: 5SD7483-0KK02     Manufacturer: Siemens
Surge arrester, type 2, UC 1000 V DC, Imax 40 kA short-circuit strength 2000 A

Availability On Request

£176.90
  • Surge arrester type T2
  • Rated voltage: 1000V DC
  • Maximum discharge current: 40 kA
  • Short-circuit strength: 2000 A
  • Suitable for isolated and grounded PV systems
  • Designed for 2+V circuits

Component part

Product video
Product video


Product

Manufacturer Material ID -
5SD7483-0KK02
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
DE
UNSPSC -
39121601

Technical Specification

Construction size -
3 modular spacing
Degree of protection (IP rating) -
IP20
Max. conductor cross section flexible (fine-strand) -
25 Square millimetre
Max. conductor cross section solid (solid, stranded) -
35 Square millimetre
Max. continuous voltage DC -
1000 Volt
Max. discharge surge current (8/20) -
40 kiloampere
Max. PV-voltage -
1170 Volt
Nominal discharge surge current 8/20 µs (In) -
40 kiloampere
Nominal voltage DC -
1000 Volt
Number of conductors (without earthing) -
2
Signalling at the device -
Optic
Type / Test class 2 -
Voltage protection level -
3.7 Kilovolt

Availability On Request

£176.90
