5SD74835

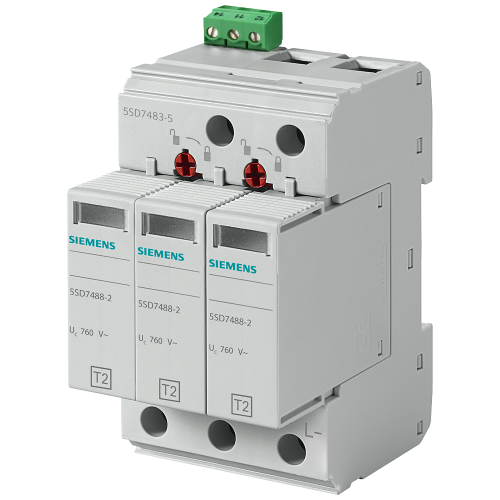

Surge arrester, Type 2, pluggable protective modules, UC 750V AC, 3-pole, for 4-wire networks (L1, L

Manufacturer's No: 5SD7483-5     Manufacturer: Siemens
Surge arrester, Type 2, pluggable protective modules, UC 750V AC, 3-pole, for 4-wire networks (L1, L

Availability In Stock

£313.12
  • Surge arrester Type 2
  • Pluggable protective modules
  • Maximum continuous operating voltage: 750V AC
  • 3-pole configuration
  • Suitable for 4-wire networks (L1, L2, L3, pen)
  • Remote signaling feature included

Component part

Product video
Product video


Product

Manufacturer Material ID -
5SD7483-5
Net Weight -
0.42kg

Additional Product Information

Commodity Code -
85363090
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Voltage protection level -
- Kilovolt
Nominal voltage DC -
- Volt
Voltage protection level L-N -
- Kilovolt
Max. continuous voltage DC -
- Volt
Max. PV-voltage -
- Volt
Voltage protection level N-PE -
- Kilovolt
Max. conductor cross section flexible (fine-strand) -
- Square millimetre
Max. continuous voltage AC -
760 Volt
Nominal discharge surge current (8/20) -
30 kiloampere
Category type 2 -
Degree of protection (IP) -
IP20
Mounting method -
DIN rail (top hat rail) 35 mm
Construction size -
Other
Signalling at the device -
Optic
Degree of protection (IP rating) -
IP20
Max. conductor cross section solid (solid, stranded) -
35 Square millimetre
Max. discharge surge current (8/20) -
30 kiloampere
Max. overcurrent protection device, parallel connection (fuse) -
100 Ampere
Max. overcurrent protection device, series connection (fuse) -
80 Ampere
Max. voltage (Uc) -
760 Volt
Nominal discharge surge current 8/20 µs (In) -
30 kiloampere
Nominal voltage AC -
690 Volt
Number of conductors (without earthing) -
3
Short-circuit breaking capacity (Isccr) -
25 kiloampere
Type / Test class 2 -
With remote signalling contact -

Availability In Stock

£313.12
