5SJ43168HG41

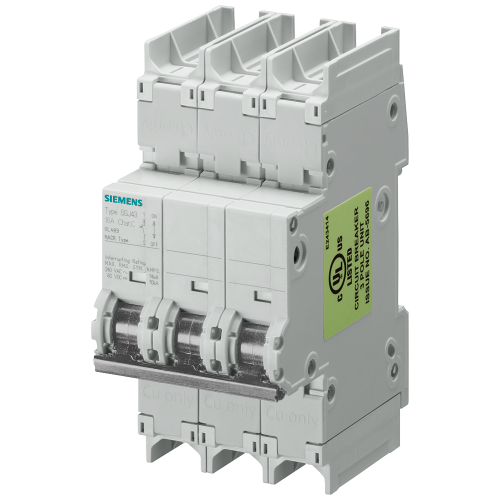

Miniature circuit breaker 240 V 14 kA, 3-pole, D, 16 A, D = 70 mm, in accordance with UL 489

Manufacturer's No: 5SJ4316-8HG41     Manufacturer: Siemens
Miniature circuit breaker 240 V 14 kA, 3-pole, D, 16 A, D = 70 mm, in accordance with UL 489

View 3D

Availability Back Order

£198.25
  • Miniature circuit breaker
  • Voltage: 240V
  • Breaking capacity: 14kA
  • Number of poles: 3
  • Trip curve: D
  • Current rating: 16A
  • Dimensions: 70mm
  • UL 489 compliant

Selectable mandatory product

Accessories

Price £0.43
Back Order
Product video
Product video


Product

Manufacturer Material ID -
5SJ4316-8HG41
Net Weight -
0.49kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Current limiting class -
-
Connectable conductor cross section solid-core -
- Square millimetre
Connectable conductor cross section multi-wired -
- Square millimetre
Rated impulse withstand voltage Uimp -
- Kilovolt
Built-in depth -
70 Millimetre
Release characteristic -
D
Degree of protection (IP) -
IP20
Frequency -
50 Hertz
Degree of protection (IP rating) -
IP20
Number of protected poles -
3
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Number of poles (total) -
3
Over voltage category -
3
Pollution degree -
3
Rated current -
16 Ampere
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
10 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
15 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
15 kiloampere
Rated voltage -
400 Volt
Recess depth -
70 Millimetre
Tripping characteristic (type/curve) -
D
Voltage type -
AC/DC
Width in number of modular spacings -
3

Availability Back Order

£198.25
