5SL30167KL

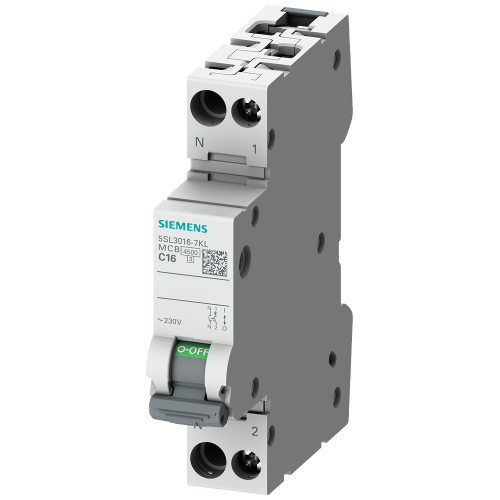

Miniature circuit breaker 230V 4.5kA, 1+N-pole/1MW, N on left C16

Manufacturer's No: 5SL3016-7KL     Manufacturer: Siemens
Miniature circuit breaker 230V 4.5kA, 1+N-pole/1MW, N on left C16

Availability On Request

£36.45
  • Circuit Breaker
    • Voltage: 230V
    • Breaking Capacity: 4.5kA
    • Configuration: 1+N Pole
    • Rated Current: 16A
    • Mounting: Left side

Accessories

Spacer 0.5 MW

Product Code - 5TG8240
Price £4.88
On Request
Price £0.0836
On Request
Price £0.0836
On Request
Product video
Product video


Product

Manufacturer Material ID -
5SL3016-7KL
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
RO
UNSPSC -
39121601

Technical Specification

Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Number of poles (total) -
2
Pollution degree -
2
Rated current -
16 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
250 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
4.5 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
4.5 kiloampere
Rated voltage -
230 Volt
Recess depth -
70 Millimetre
Tripping characteristic (type/curve) -
C
Voltage type -
AC
Width in number of modular spacings -
1
