5SL60106MF

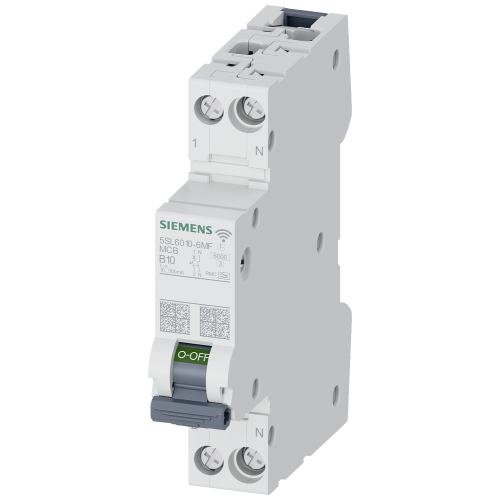

Miniature circuit breaker 5SL6 COM, measurement function, communication 230 V 6 kA, 1+N, B, 10 A

Manufacturer's No: 5SL6010-6MF     Manufacturer: Siemens
Miniature circuit breaker 5SL6 COM, measurement function, communication 230 V 6 kA, 1+N, B, 10 A

Availability On Request

£212.80
  • Miniature Circuit Breaker
  • Type: RCM / EM Communication
  • Voltage: AC 230V
  • Breaking Capacity: 6kA
  • Configuration: 1+N pole, Type B
  • Current Rating: 10A
  • Radio approval required for certain countries (refer to Certificates for list)

Selectable mandatory product

Accessories

Spacer 0.5 MW

Product Code - 5TG8240
Price £4.88
On Request
Price £0.0836
On Request
Price £0.0836
On Request
Product video
Product video


Product

Manufacturer Material ID -
5SL6010-6MF
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
CN
UNSPSC -
39121601

Technical Specification

Additional equipment possible -
Ambient temperature during operating -
-40 Degrees celsius
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Number of poles (total) -
2
Pollution degree -
2
Rated current -
10 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
285 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
6 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
6 kiloampere
Rated voltage -
230 Volt
Recess depth -
70 Millimetre
Tripping characteristic (type/curve) -
B
Voltage type -
AC
Width in number of modular spacings -
1

Availability On Request

£212.80
