5SL60166MC

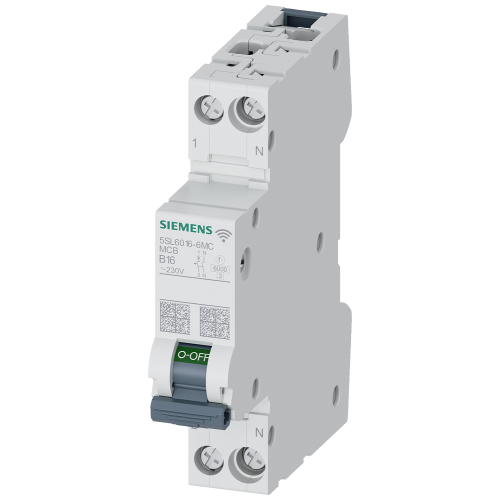

Miniature circuit breaker 5SL6 COM, measurement function, communication 230 V 6 kA, 1+N, B, 16 A

Manufacturer's No: 5SL6016-6MC     Manufacturer: Siemens

Availability Back Order

£128.09
  • Miniature Circuit Breaker
  • AC Voltage: 230V
  • Breaking Capacity: 6kA
  • Configuration: 1+N pole, Type B
  • Current Rating: 16A
  • Communication capabilities
  • Radio approval required for certain countries (refer to Certificates for list)

Selectable mandatory product

Accessories

Spacer 0.5 MW

Product Code - 5TG8240
Price £4.76
Back Order
Price £0.0816
Back Order
Price £0.0816
Back Order
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Product video
Instructional video
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
5SL6016-6MC
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121601

Technical Specification

Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Number of poles (total) -
2
Pollution degree -
2
Rated current -
16 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
250 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
6 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
6 kiloampere
Rated voltage -
230 Volt
Recess depth -
70 Millimetre
Tripping characteristic (type/curve) -
B
Voltage type -
AC
Width in number of modular spacings -
1

Availability Back Order

£128.09
