5SP37352

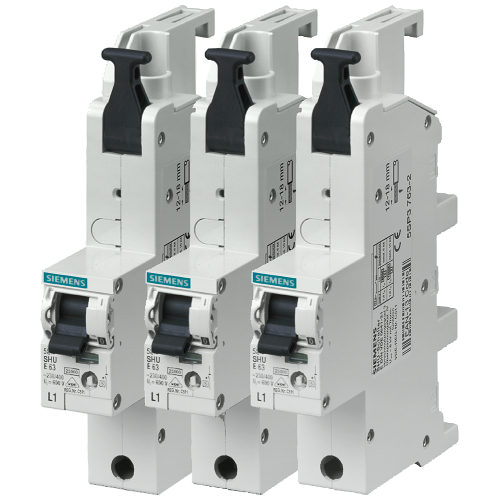

Main miniature circuit breaker (SHU), 1-pole, E 35 A, 230/400 V

Manufacturer's No: 5SP3735-2     Manufacturer: Siemens
Main miniature circuit breaker (SHU), 1-pole, E 35 A, 230/400 V

Availability On Request

£410.72
  • Main miniature circuit breaker (SHU)
  • 1-pole
  • Rated current: 35A
  • Voltage: 230/400V
  • Suitable for use with L1, L2, L3 phases

Selectable mandatory product



Product

Manufacturer Material ID -
5SP3735-2
Net Weight -
1.31kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121601

Technical Specification

Construction size (in accordance with DIN 43880) -
-
Release characteristic -
E
Rated insulation voltage Ui -
690 Volt
Over voltage category -
4
Degree of protection (IP) -
IP40
Frequency -
50 Hertz
Mounting method -
Busbar
Number of poles -
1
Pollution degree -
3
Rated current -
35 Ampere
Rated surge voltage invariability -
6 Kilovolt
Rated switching capacity -
25 kiloampere
Rated voltage -
230 Volt
Tripping characteristic (type/curve) -
E

Availability On Request

£410.72
