5ST2505

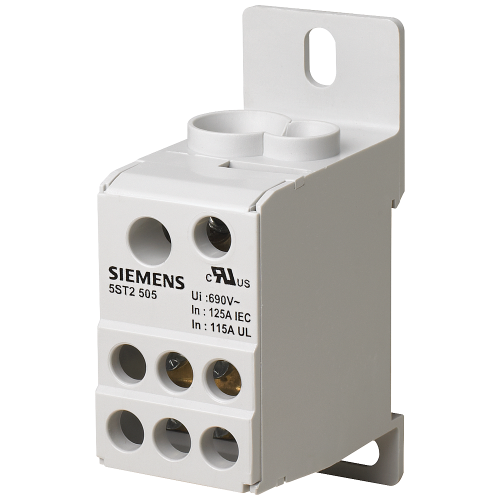

Distribution block 1-pole, 125 A, 690V Input: 1x 10-35+1x 6-16 mm2 Output: 6x 2.5-16 mm2 for install

Manufacturer's No: 5ST2505     Manufacturer: Siemens
Distribution block 1-pole, 125 A, 690V Input: 1x 10-35+1x 6-16 mm2 Output: 6x 2.5-16 mm2 for install

Availability On Request

£32.23
  • Distribution block: 1-pole
  • Current rating: 125 A
  • Voltage rating: 690V
  • Input: 1x 10-35 mm2 + 1x 6-16 mm2
  • Output: 6x 2.5-16 mm2
  • Mounting: Standard mounting rail installation

Accessories



Product

Manufacturer Material ID -
5ST2505
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
FR
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121410

Technical Specification

Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
2.5 Square millimetre
Connectable conductor cross section multi-wired -
2.5 Square millimetre
Connectable conductor cross section solid-core -
2.5 Square millimetre
Height -
43 Millimetre
Internally connected stages -
Material insulation body -
Other
Number of clamp positions per level -
7
Number of levels -
1
Operating temperature -
-25 Degrees celsius
Rated current In -
125 Ampere
Rated voltage -
600 Volt
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection
Width -
27 Millimetre

Availability On Request

£32.23
