5SU16447WK82

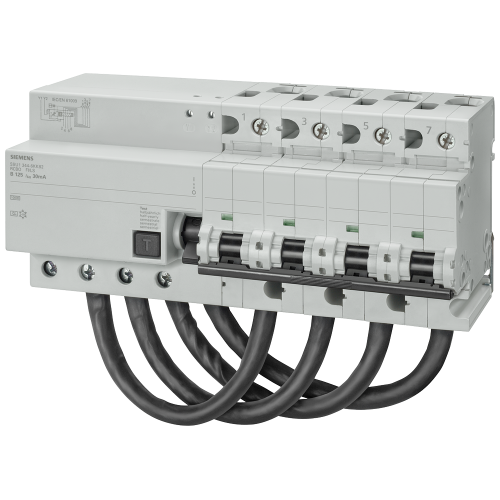

RCBO, 10 kA, 4-pole, type A, selective, 300 mA, C char, In: 125 A

Manufacturer's No: 5SU1644-7WK82     Manufacturer: Siemens
RCBO, 10 kA, 4-pole, type A, selective, 300 mA, C char, In: 125 A

Availability On Request

£1,831.86
  • RCBO
  • 10 kA breaking capacity
  • 4P (4 poles)
  • Type A
  • Selective
  • 300 mA sensitivity
  • C-Char curve
  • Rated current: 125 A
  • Rated voltage: 400 V AC

Accessories



Product

Manufacturer Material ID -
5SU1644-7WK82
Net Weight -
2.03kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121601

Technical Specification

Frequency -
UN
Built-in depth -
70 Millimetre
Release characteristic -
C
Over voltage category -
3
Degree of protection (IP) -
IP20
Suitable for flush-mounted installation -
Ambient temperature during operating -
-25 Degrees celsius
Rated impulse withstand voltage Uimp -
4 Kilovolt
Rated short-circuit breaking capacity Icn acc. EN 61009-1 -
10 kiloampere
Rated short-circuit breaking capacity acc. EN 61009 -
10 kiloampere
Anti-nuisance tripping version -
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
6 Square millimetre
Connectable conductor cross section solid-core -
6 Square millimetre
Current limiting class -
3
Disconnection characteristic -
Selective
Flush-mounted installation -
Leakage current type -
A
Number of poles (total) -
4
Number of protected poles -
4
Pollution degree -
2
Rated current -
125 Ampere
Rated fault current -
0.3 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity according to EN 61009 -
10 kiloampere
Rated short-circuit breaking capacity Icn according to EN 61009-1 -
10 kiloampere
Rated short-circuit breaking capacity IEC 60947-2 -
10 kiloampere
Rated voltage -
400 Volt
Recess depth -
70 Millimetre
Surge current capacity -
5 kiloampere
Tripping characteristic (type/curve) -
C
Voltage type -
AC
Width in number of modular spacings -
11
With interlocking device -

Availability On Request

£1,831.86
