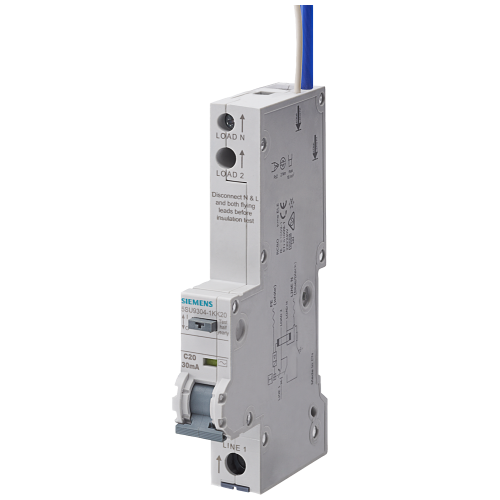

5SU93061KK20

RCBO, 6 kA, 1P+N, Type AC, 30 mA, C-Char, In: 20 A, Un AC: 230 V, pigtail 600 mm, solid N

Manufacturer's No: 5SU9306-1KK20     Manufacturer: Siemens
RCBO, 6 kA, 1P+N, Type AC, 30 mA, C-Char, In: 20 A, Un AC: 230 V, pigtail 600 mm, solid N

Availability In Stock

£64.27
  • RCBO (Residual Current Circuit Breaker with Overcurrent Protection)
  • 6 kA breaking capacity
  • 1P+N poles
  • Type AC
  • 30 mA sensitivity
  • C-Char trip curve
  • Rated current: 20 A
  • Rated voltage: 230 V AC
  • Pigtail length: 600 mm
  • Solid neutral connection

Accessories



Product

Manufacturer Material ID -
5SU9306-1KK20
Net Weight -
0.26kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
CN
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Anti-nuisance tripping version -
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Disconnection characteristic -
Undelayed
Flush-mounted installation -
Leakage current type -
AC
Number of poles (total) -
2
Number of protected poles -
1
Pollution degree -
2
Rated current -
20 Ampere
Rated fault current -
0.03 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
264 Volt
Rated short-circuit breaking capacity according to EN 61009 -
6 kiloampere
Rated short-circuit breaking capacity Icn according to EN 61009-1 -
6 kiloampere
Rated short-circuit breaking capacity IEC 60947-2 -
6 kiloampere
Rated voltage -
230 Volt

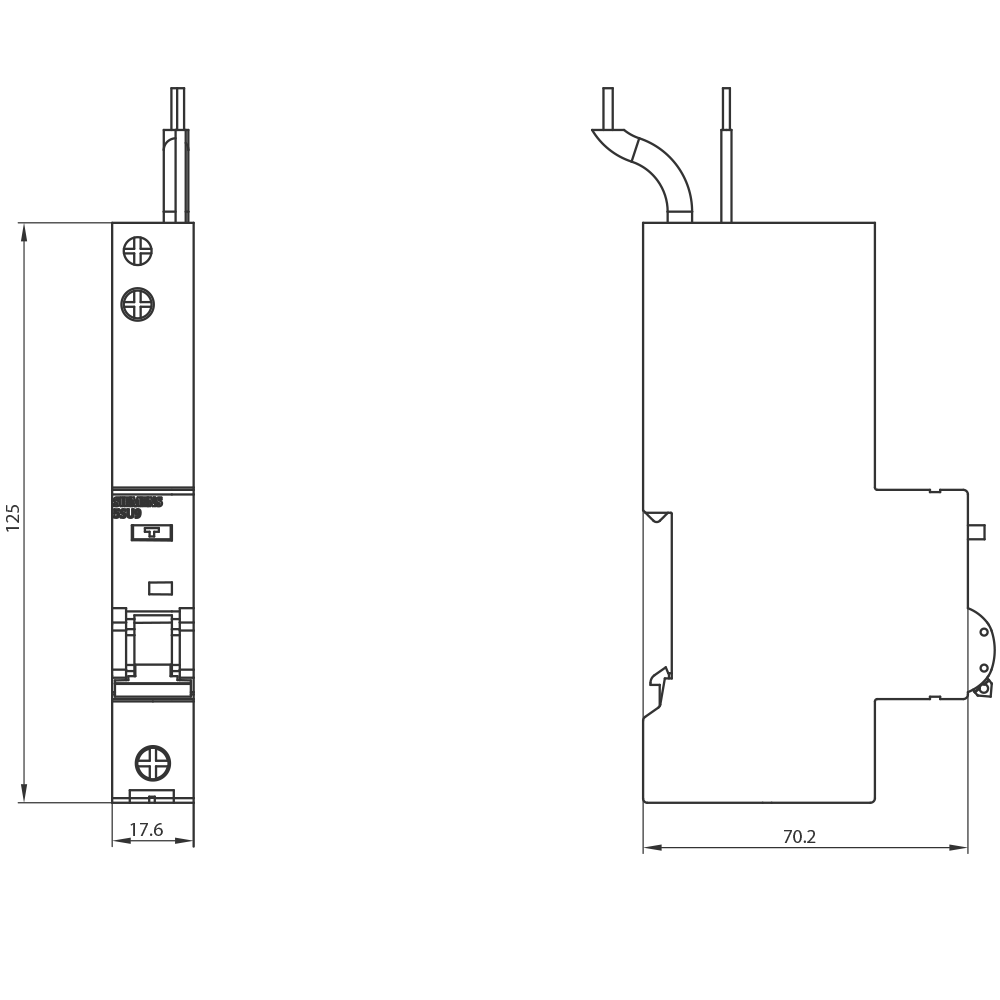

Recess depth -
70 Millimetre
Surge current capacity -
1 kiloampere
Tripping characteristic (type/curve) -
C
Voltage type -
AC
Width in number of modular spacings -
1
With interlocking device -
