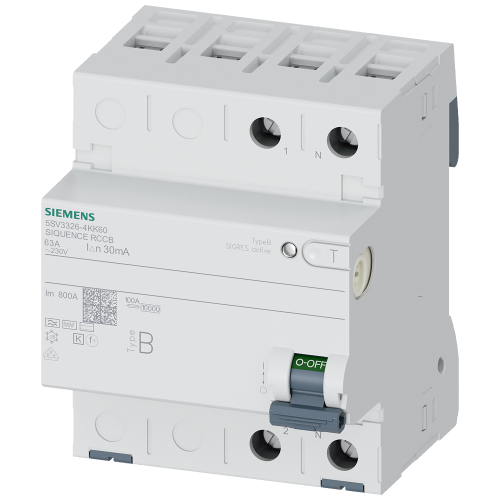

5SV33264KK60

RCCB, 2-pole, type B, In: 63 A, 30 mA, 6mA DC, Un AC: 230 V

Manufacturer's No: 5SV3326-4KK60     Manufacturer: Siemens
RCCB, 2-pole, type B, In: 63 A, 30 mA, 6mA DC, Un AC: 230 V

Availability On Request

£1,081.20
  • Residual current operated circuit breaker
  • 2-pole, Type B
  • Rated current: 63A
  • Sensitivity: 30mA AC, 6mA DC
  • Rated voltage: 230V AC
  • Suitable for mobile installations

Selectable mandatory product

Accessories

Price £0.0836
On Request
Price £0.0836
On Request


Product

Manufacturer Material ID -
5SV3326-4KK60
Net Weight -
0.38kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
UNSPSC -
39121601

Technical Specification

Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Frequency -
50/60 Hz
Leakage current type -
B
Number of poles -
2
Pollution degree -
2
Power loss -
5 Watt
RAL-number (similar) -
7035
Rated current -
63 Ampere
Rated fault current -
0.03 Ampere
Rated impulse-withstand voltage (Uimp) -
6 Kilovolt
Rated insulation voltage Ui -
2000 Volt
Rated voltage -
230 Volt
Recess depth -
70 Millimetre
Short-circuit breaking capacity (Icw) -
10 kiloampere
Short-time delayed tripping -
Surge current capacity -
3 kiloampere
Voltage type -
AC
Width in number of modular spacings -
4
With interlocking device -

Availability On Request

£1,081.20
