5SV33476KK01

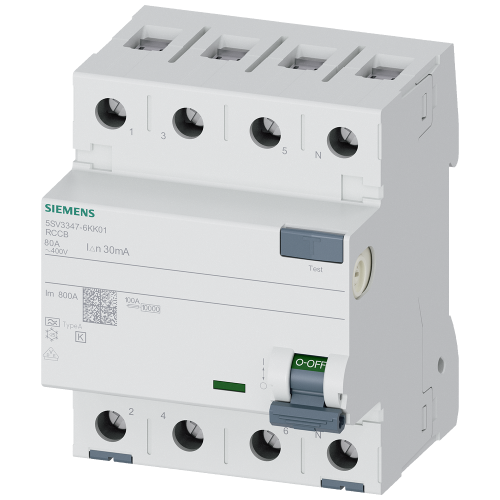

RCCB, 4-pole, type A, short-time delayed, In: 80 A, 30 mA

Manufacturer's No: 5SV3347-6KK01     Manufacturer: Siemens
RCCB, 4-pole, type A, short-time delayed, In: 80 A, 30 mA

Availability On Request

£1,115.93
  • Residual current operated circuit breaker
  • 4-pole, type A
  • Short-time delayed
  • Rated current (In): 80 A
  • Sensitivity: 30 mA
  • Rated voltage (Un AC): 400 V

Selectable mandatory product

Accessories

Price £0.0836
On Request
Price £0.0836
On Request


Product

Manufacturer Material ID -
5SV3347-6KK01
Net Weight -
0.37kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Rated impulse withstand voltage Uimp -
- Kilovolt
Mounting method -
DIN rail
Built-in depth -
70 Millimetre
Degree of protection (IP) -
IP20
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Frequency -
50 Hz
Leakage current type -
A
Number of poles -
4
Pollution degree -
2
Power loss -
4.1 Watt
RAL-number (similar) -
7035
Rated current -
80 Ampere
Rated fault current -
0.03 Ampere
Rated impulse-withstand voltage (Uimp) -
6 Kilovolt
Rated insulation voltage Ui -
2000 Volt
Rated voltage -
400 Volt
Recess depth -
70 Millimetre
Short-circuit breaking capacity (Icw) -
10 kiloampere
Short-time delayed tripping -
Surge current capacity -
3 kiloampere
Voltage type -
AC
Width in number of modular spacings -
4
With interlocking device -

Availability On Request

£1,115.93
