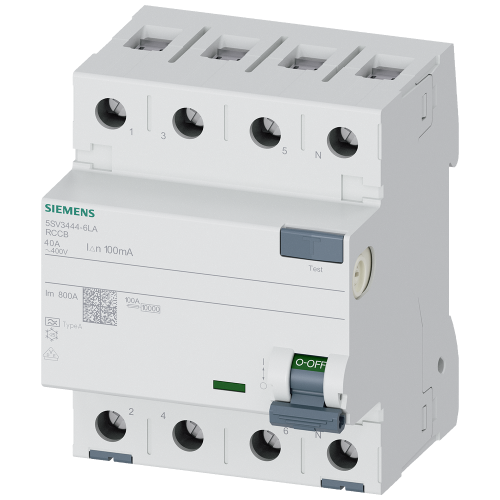

5SV34446LA

RCCB, 4-pole, type A, In: 40 A, 100 mA, Un AC: 400 V

Manufacturer's No: 5SV3444-6LA     Manufacturer: Siemens
RCCB, 4-pole, type A, In: 40 A, 100 mA, Un AC: 400 V

Availability On Request

£248.06
  • Residual current operated circuit breaker
  • 4-pole, Type A
  • Rated current: 40 A
  • Sensitivity: 100 mA
  • Rated voltage: 400 V AC
  • Includes thermal overload protection

Selectable mandatory product

Accessories

Price £0.0836
On Request
Price £0.0836
On Request


Product

Manufacturer Material ID -
5SV3444-6LA
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121601

Technical Specification

Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Frequency -
50 Hz
Leakage current type -
A
Number of poles -
4
Pollution degree -
2
Power loss -
1.8 Watt
RAL-number (similar) -
7035
Rated current -
40 Ampere
Rated fault current -
0.1 Ampere
Rated impulse-withstand voltage (Uimp) -
6 Kilovolt
Rated insulation voltage Ui -
2000 Volt
Rated voltage -
400 Volt
Recess depth -
70 Millimetre
Short-circuit breaking capacity (Icw) -
10 kiloampere
Surge current capacity -
1 kiloampere
Voltage type -
AC
Width in number of modular spacings -
4
With interlocking device -
