5SV36426KK12

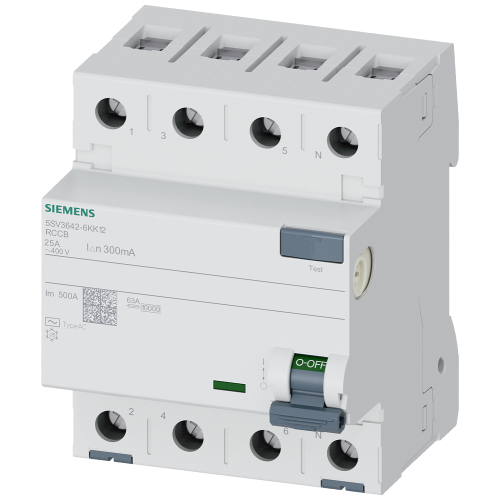

RCCB, 4-pole, type A, In: 25 A, 300 mA, Un AC: 400 V, SIGRES

Manufacturer's No: 5SV3642-6KK12     Manufacturer: Siemens
RCCB, 4-pole, type A, In: 25 A, 300 mA, Un AC: 400 V, SIGRES

Availability On Request

£176.78
  • Residual Current Operated Circuit Breaker
  • 4-pole, Type A
  • Rated Current (In): 25 A
  • Sensitivity: 300 mA
  • Rated Voltage (Un AC): 400 V
  • Suitable for harsh ambient conditions
  • Extended test interval

Selectable mandatory product

Accessories

Price £0.0836
On Request
Price £0.0836
On Request


Product

Manufacturer Material ID -
5SV3642-6KK12
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121601

Technical Specification

Mounting method -
DIN rail
Built-in depth -
70 Millimetre
Degree of protection (IP) -
IP20
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Frequency -
50 Hz
Leakage current type -
A
Number of poles -
4
Pollution degree -
2
Power loss -
0.9 Watt
RAL-number (similar) -
7035
Rated current -
25 Ampere
Rated fault current -
0.3 Ampere
Rated impulse-withstand voltage (Uimp) -
6 Kilovolt
Rated insulation voltage Ui -
2000 Volt
Rated voltage -
400 Volt
Recess depth -
70 Millimetre
Short-circuit breaking capacity (Icw) -
10 kiloampere
Surge current capacity -
1 kiloampere
Voltage type -
AC
Width in number of modular spacings -
4
With interlocking device -
