5SV36526

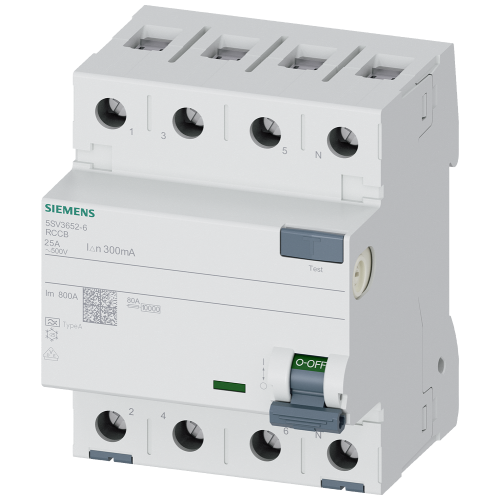

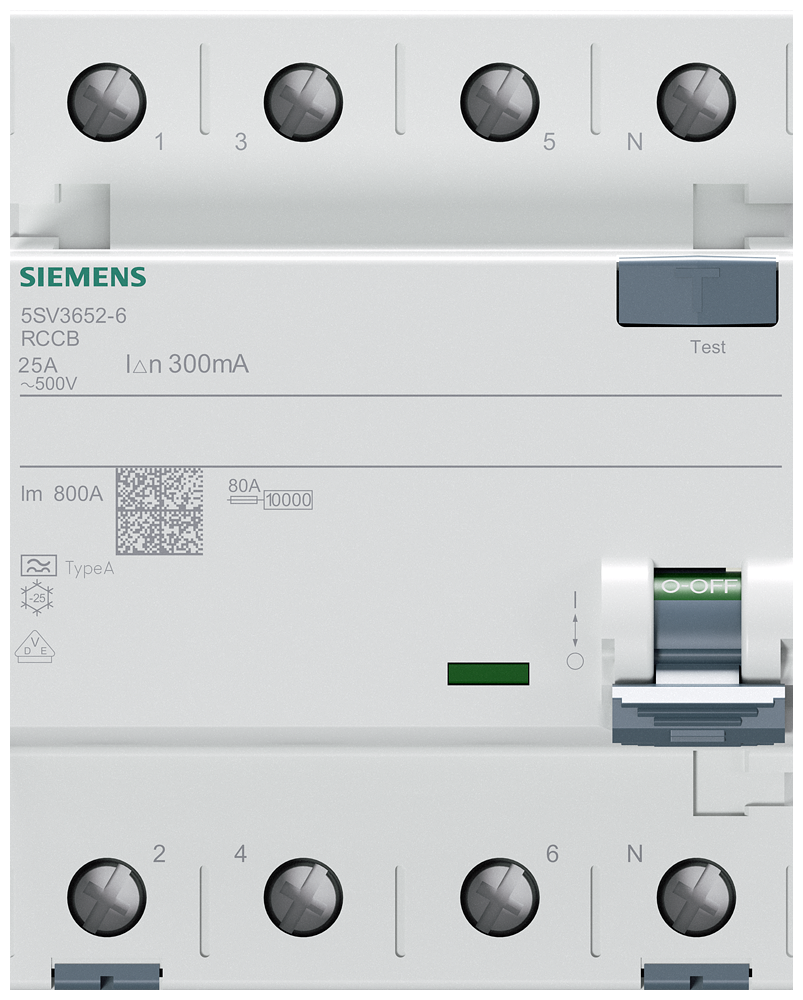

RCCB, 4-pole, type A, In: 25 A, 300 mA, Un AC: 500 V

Manufacturer's No: 5SV3652-6     Manufacturer: Siemens
RCCB, 4-pole, type A, In: 25 A, 300 mA, Un AC: 500 V

Availability On Request

£235.85
  • Residual current operated circuit breaker
  • 4-pole, type A
  • Rated current: 25 A
  • Sensitivity: 300 mA
  • Rated voltage: 500 V AC

Selectable mandatory product

Accessories

Price £0.0836
On Request
Price £0.0836
On Request


Product

Manufacturer Material ID -
5SV3652-6
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121601

Technical Specification

Built-in depth -
70 Millimetre
Degree of protection (IP) -
IP20
Mounting method -
DIN rail
Degree of protection (IP rating) -
IP20
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Frequency -
50 Hz
Leakage current type -
A
Number of poles -
4
Pollution degree -
2
Power loss -
0.8 Watt
RAL-number (similar) -
7035
Rated current -
25 Ampere
Rated fault current -
0.3 Ampere
Rated impulse-withstand voltage (Uimp) -
6 Kilovolt
Rated insulation voltage Ui -
2000 Volt
Rated voltage -
500 Volt
Recess depth -
70 Millimetre
Short-circuit breaking capacity (Icw) -
10 kiloampere
Surge current capacity -
1 kiloampere
Voltage type -
AC
Width in number of modular spacings -
4
With interlocking device -

Availability On Request

£235.85
