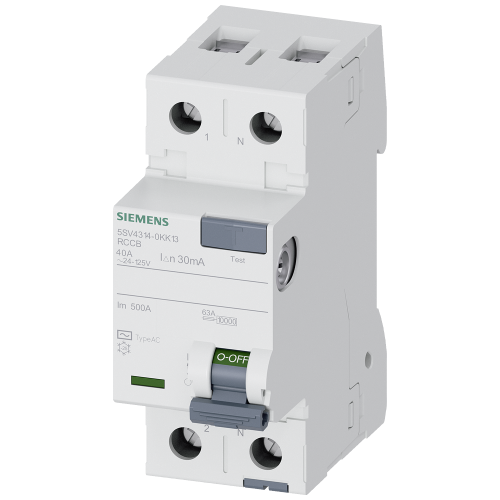

5SV43140KK13

RCCB, 2-pole, type AC, In: 40 A, 30 mA, Un AC: 24-125 V

Manufacturer's No: 5SV4314-0KK13     Manufacturer: Siemens
RCCB, 2-pole, type AC, In: 40 A, 30 mA, Un AC: 24-125 V

Availability On Request

£103.61
  • Residual Current Operated Circuit Breaker
  • 2-pole, Type AC
  • Rated Current (In): 40 A
  • Sensitivity: 30 mA
  • Rated Voltage (Un AC): 24-125 V
  • Not permitted for use in all countries
  • Comply with national installation regulations

Selectable mandatory product

Accessories

Price £0.0836
On Request
Price £0.0836
On Request


Product

Manufacturer Material ID -
5SV4314-0KK13
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Surge current capacity -
- kiloampere
Rated impulse withstand voltage Uimp -
- Kilovolt
Mounting method -
DIN rail
Built-in depth -
70 Millimetre
Degree of protection (IP) -
IP20
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Frequency -
50 Hz
Leakage current type -
AC
Number of poles -
2
Pollution degree -
2
Power loss -
2.6 Watt
RAL-number (similar) -
7035
Rated current -
40 Ampere
Rated fault current -
0.03 Ampere
Rated impulse-withstand voltage (Uimp) -
6 Kilovolt
Rated insulation voltage Ui -
2000 Volt
Rated voltage -
125 Volt
Recess depth -
70 Millimetre
Short-circuit breaking capacity (Icw) -
10 kiloampere
Voltage type -
AC
Width in number of modular spacings -
2
With interlocking device -

Availability On Request

£103.61
