5SV43160KK13

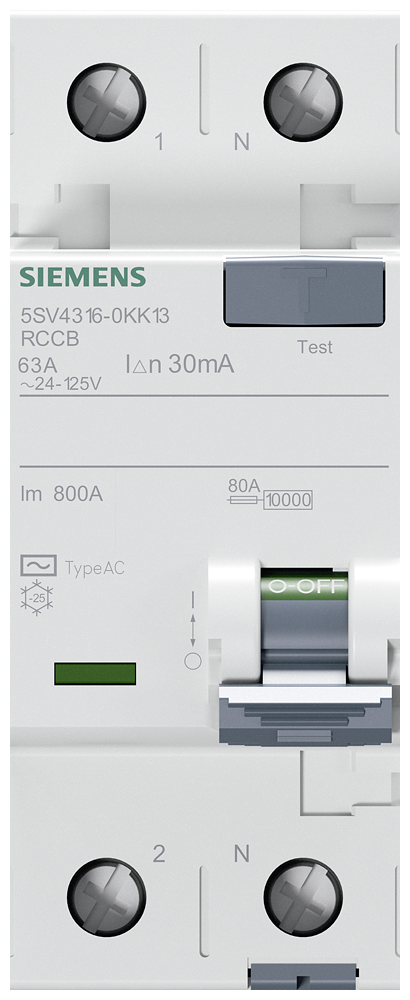

RCCB, 2-pole, type AC, In: 63 A, 30 mA, Un AC: 24-125 V

Manufacturer's No: 5SV4316-0KK13     Manufacturer: Siemens
RCCB, 2-pole, type AC, In: 63 A, 30 mA, Un AC: 24-125 V

View 3D

Availability Back Order

£286.83
  • Residual current operated circuit breaker
  • 2-pole, type AC
  • Rated current: 63 A
  • Sensitivity: 30 mA
  • Rated voltage: 24-125 V AC
  • Not permitted for use in all countries
  • Comply with national installation regulations

Selectable mandatory product

Accessories

Price £0.0816
Back Order
Price £0.0816
Back Order


Product

Manufacturer Material ID -
5SV4316-0KK13
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121601

Technical Specification

Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Frequency -
50 Hz
Leakage current type -
AC
Number of poles -
2
Pollution degree -
2
Power loss -
5.3 Watt
RAL-number (similar) -
7035
Rated current -
63 Ampere
Rated fault current -
0.03 Ampere
Rated impulse-withstand voltage (Uimp) -
6 Kilovolt
Rated insulation voltage Ui -
2000 Volt
Rated voltage -
125 Volt
Recess depth -
70 Millimetre
Short-circuit breaking capacity (Icw) -
10 kiloampere
Voltage type -
AC
Width in number of modular spacings -
2
With interlocking device -
