5SV43170KL

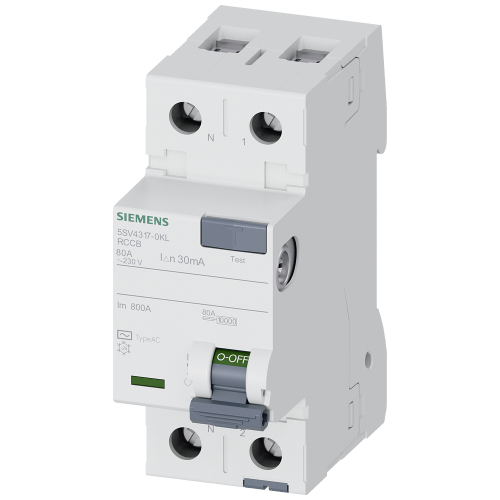

RCCB, 2-pole, type AC, In: 80 A, 30 mA, Un AC: 230 V, N left

Manufacturer's No: 5SV4317-0KL     Manufacturer: Siemens
RCCB, 2-pole, type AC, In: 80 A, 30 mA, Un AC: 230 V, N left

Availability On Request

£309.16
  • Residual current operated circuit breaker
  • 2-pole, type AC
  • Rated current: 80 A
  • Sensitivity: 30 mA
  • Rated voltage: 230 V AC
  • Not permitted for use in all countries
  • Follow national installation regulations

Selectable mandatory product

Accessories

Price £0.0836
On Request
Price £0.0836
On Request


Product

Manufacturer Material ID -
5SV4317-0KL
Net Weight -
0.21kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121601

Technical Specification

Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Frequency -
50 Hz
Leakage current type -
AC
Number of poles -
2
Pollution degree -
2
Power loss -
5.6 Watt
RAL-number (similar) -
7035
Rated current -
80 Ampere
Rated fault current -
0.03 Ampere
Rated impulse-withstand voltage (Uimp) -
6 Kilovolt
Rated insulation voltage Ui -
2000 Volt
Rated voltage -
230 Volt
Recess depth -
70 Millimetre
Short-circuit breaking capacity (Icw) -
10 kiloampere
Voltage type -
AC
Width in number of modular spacings -
2
With interlocking device -
