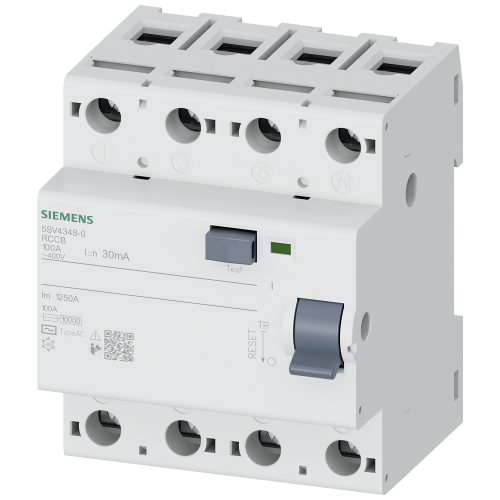

5SV43480

RCCB, 4-pole, type AC, In: 100 A, 30 mA, Un AC: 400 V

Manufacturer's No: 5SV4348-0     Manufacturer: Siemens
RCCB, 4-pole, type AC, In: 100 A, 30 mA, Un AC: 400 V

Availability On Request

£1,231.90
  • Residual Current Operated Circuit Breaker
  • 4-pole, Type AC
  • Rated Current (In): 100 A
  • Sensitivity: 30 mA
  • Rated Voltage (Un AC): 400 V
  • Not permitted for use in all countries
  • Comply with national installation regulations

Selectable mandatory product

Accessories

Price £0.0836
On Request
Price £0.0836
On Request


Product

Manufacturer Material ID -
5SV4348-0
Net Weight -
0.38kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
SI
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121601

Technical Specification

Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
1 Square millimetre
Connectable conductor cross section solid-core -
1 Square millimetre
Frequency -
50 Hz
Leakage current type -
AC
Number of poles -
4
Pollution degree -
2
Power loss -
7 Watt
RAL-number (similar) -
7035
Rated current -
100 Ampere
Rated fault current -
0.03 Ampere
Rated impulse-withstand voltage (Uimp) -
6 Kilovolt
Rated insulation voltage Ui -
2000 Volt
Rated voltage -
400 Volt
Recess depth -
73 Millimetre
Short-circuit breaking capacity (Icw) -
10 kiloampere
Surge current capacity -
1 kiloampere
Voltage type -
AC
Width in number of modular spacings -
4

Availability On Request

£1,231.90
