5SV46440KL

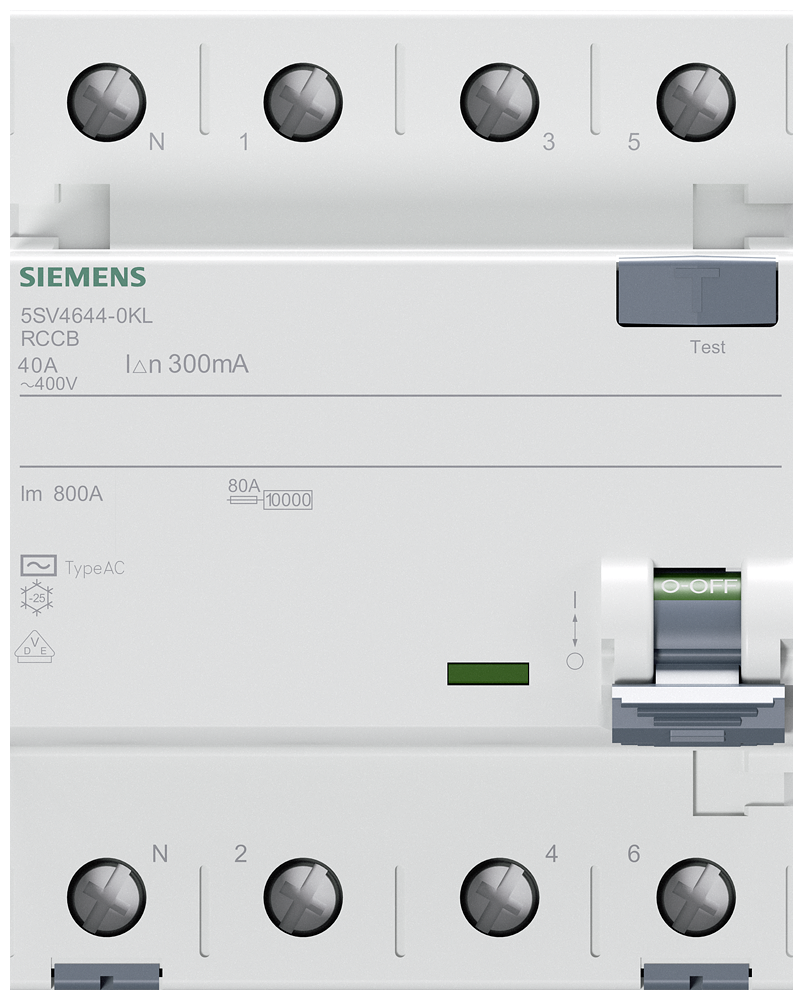

Residual current operated circuit breaker, 4-pole, Type AC, In: 40 A, 300 mA, Un AC: 400 V, N left

Manufacturer's No: 5SV4644-0KL     Manufacturer: Siemens
Residual current operated circuit breaker, 4-pole, Type AC, In: 40 A, 300 mA, Un AC: 400 V, N left

Availability In Stock

£94.43
  • Residual current operated circuit breaker
  • 4-pole, type AC
  • Rated current: 40 A
  • Sensitivity: 300 mA
  • Rated voltage: 400 V AC
  • N left configuration
  • Check local regulations before use

Selectable mandatory product

PIN BUSBAR.16SQMM,3PH,FI NLI+8XPH

Product Code - 5ST3668
Price £14.62
On Request

Accessories

Price £0.0836
On Request
Price £0.0836
On Request


Product

Manufacturer Material ID -
5SV4644-0KL
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
39121601

Technical Specification

Mounting method -
DIN rail
Degree of protection (IP rating) -
IP20
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Frequency -
50 Hz
Leakage current type -
AC
Number of poles -
4
Pollution degree -
2
Power loss -
2 Watt
RAL-number (similar) -
7035
Rated current -
40 Ampere
Rated fault current -
0.3 Ampere
Rated impulse-withstand voltage (Uimp) -
6 Kilovolt
Rated insulation voltage Ui -
2000 Volt
Rated voltage -
400 Volt
Recess depth -
70 Millimetre
Short-circuit breaking capacity (Icw) -
10 kiloampere
Voltage type -
AC
Width in number of modular spacings -
4
With interlocking device -
