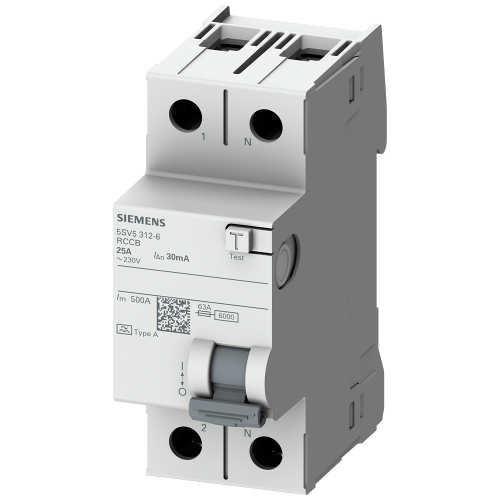

5SV53126

RCCB, 2-pole, type A, In: 25 A, 30 mA, Un AC: 230 V residential buildings

Manufacturer's No: 5SV5312-6     Manufacturer: Siemens
RCCB, 2-pole, type A, In: 25 A, 30 mA, Un AC: 230 V residential buildings

Availability On Request

£120.93
  • Residual current operated circuit breaker
  • 2-pole
  • Type A
  • Rated current (In): 25 A
  • Sensitivity: 30 mA
  • Rated voltage (Un AC): 230 V

Accessories

Price £0.0836
On Request
Price £0.0836
On Request


Product

Manufacturer Material ID -
5SV5312-6
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121601

Technical Specification

Ambient temperature during operating -
-5 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Frequency -
50 Hz
Leakage current type -
A
Number of poles -
2
Pollution degree -
2
Power loss -
2.6 Watt
RAL-number (similar) -
7035
Rated current -
25 Ampere
Rated fault current -
0.03 Ampere
Rated impulse-withstand voltage (Uimp) -
6 Kilovolt
Rated insulation voltage Ui -
2000 Volt
Rated voltage -
230 Volt
Recess depth -
70 Millimetre
Short-circuit breaking capacity (Icw) -
6 kiloampere
Voltage type -
AC
Width in number of modular spacings -
2
With interlocking device -

Availability On Request

£120.93
