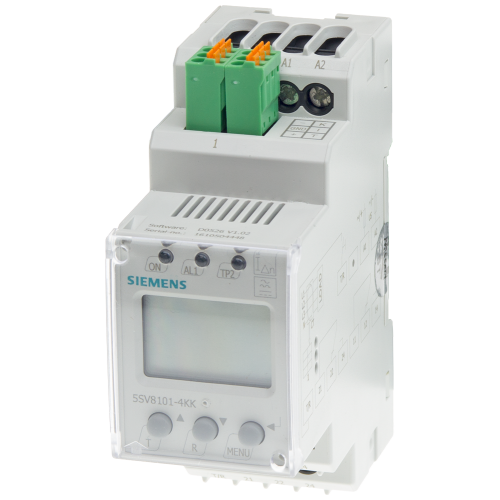

5SV81014KK

Modular residual current device type B, 230 V AC, LCD, 50/60 Hz, IDN 30 mA to 1 A, 0 - 2000 Hz.

Manufacturer's No: 5SV8101-4KK     Manufacturer: Siemens
Modular residual current device type B, 230 V AC, LCD, 50/60 Hz, IDN 30 mA to 1 A, 0 - 2000 Hz.

View 3D

Availability Back Order

£1,301.09
  • Modular residual current device Type B
  • Voltage: 230 V AC
  • Frequency: 50/60 Hz
  • Sensitivity: 30 mA
  • LCD display
  • Current rating: 1A
  • Frequency range: 0-2000 Hz

Selectable mandatory product



Product

Manufacturer Material ID -
5SV8101-4KK
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
90303330
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
41113637

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Response value amperage 1 -
- Milliampere
Rated frequency -
50 Hertz
Rated voltage -
184 Volt
Voltage type for actuating -
AC
Depth -
64 Millimetre
Error registration possible -
Function -
For mixed system
Height -
85 Millimetre
Indication of difference current -
Max. permitted delay-on energization time -
10 Second
Min. adjustable delay-on energization time -
0.06 Second
Number of contacts as change-over contact -
2
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Response value amperage 2 -
30 Milliampere
Type of electric connection -
Screw connection
Width -
36 Millimetre
With detachable clamps -
