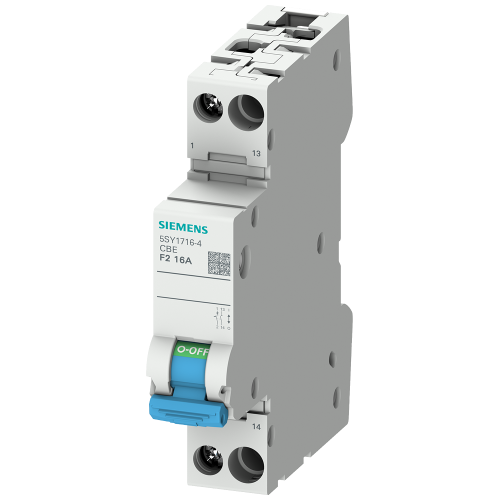

5SY17164

Device circuit breaker, 230 V

Manufacturer's No: 5SY1716-4     Manufacturer: Siemens
Device circuit breaker, 230 V

View 3D

Availability Back Order

£27.50
  • Device Type: Circuit Breaker
  • Configuration: 1-Pole
  • Auxiliary Switch: NO Contact
  • Characteristic: F2
  • Current Rating: 16A
  • Voltage Rating: 230V AC, 60V DC
  • Frequency: 50/60Hz
  • Short-Circuit Breaking Capacity: 3kA AC
  • Standard: IEC 60934

Accessories

Spacer 0.5 MW

Product Code - 5TG8240
Price £4.76
Back Order
Product video
Product video


Product

Manufacturer Material ID -
5SY1716-4
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
RO
UNSPSC -
39121601

Technical Specification

Rated insulation voltage Ui -
- Volt
Current limiting class -
-
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
- kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
- kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
- kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
- kiloampere
Built-in depth -
70 Millimetre
Release characteristic -
Other
Degree of protection (IP) -
IP20
Rated impulse withstand voltage Uimp -
4 Kilovolt
Frequency -
50 Hertz
Tripping characteristic (type/curve) -
Other
Over voltage category -
3
Number of protected poles -
1
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Connectable conductor cross section solid-core -
0.5 Square millimetre
Degree of protection (IP rating) -
IP20
Number of poles (total) -
1
Pollution degree -
2
Rated current -
16 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated voltage -
230 Volt
Recess depth -
70 Millimetre
Voltage type -
AC/DC
Width in number of modular spacings -
1

Availability Back Order

£27.50
