5SY42086

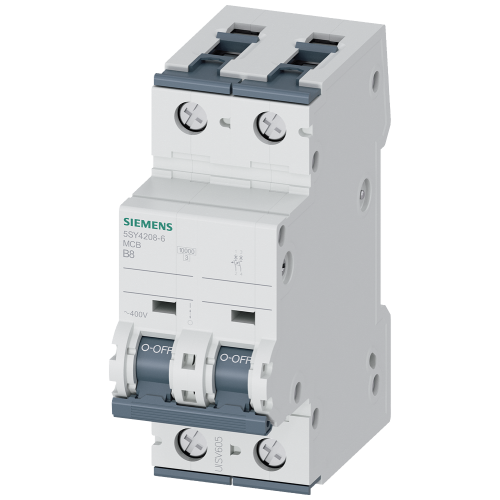

Miniature circuit breaker 400 V 10 kA, 2-pole, B, 8 A, D=70 mm

Manufacturer's No: 5SY4208-6     Manufacturer: Siemens
Miniature circuit breaker 400 V 10 kA, 2-pole, B, 8 A, D=70 mm

Availability On Request

£88.18
  • Miniature Circuit Breaker (MCB)
  • Voltage: 400V AC
  • Breaking Capacity: 10kA
  • Poles: 2
  • Type: B
  • Current Rating: 8A
  • Terminal Size: 70mm

Selectable mandatory product

Accessories

Presentation video
Presentation video
Product video


Product

Manufacturer Material ID -
5SY4208-6
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121601

Technical Specification

Built-in depth -
70 Millimetre
Release characteristic -
B
Over voltage category -
3
Degree of protection (IP) -
IP20
Number of protected poles -
2
Rated impulse withstand voltage Uimp -
4 Kilovolt
Additional equipment possible -
Ambient temperature during operating -
-40 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Number of poles (total) -
2
Pollution degree -
3
Rated current -
8 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
10 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
20 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
20 kiloampere
Rated voltage -
400 Volt
Recess depth -
70 Millimetre
Tripping characteristic (type/curve) -
B
Voltage type -
AC
Width in number of modular spacings -
2

Availability On Request

£88.18
