5SY45156

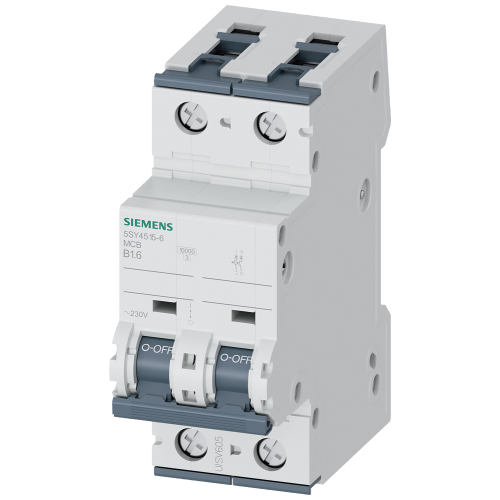

Miniature circuit breaker 230 V 10 kA, 1+N-pole, B, 1.6 A, D=70 mm

Manufacturer's No: 5SY4515-6     Manufacturer: Siemens
Miniature circuit breaker 230 V 10 kA, 1+N-pole, B, 1.6 A, D=70 mm

Availability On Request

£60.03
  • Circuit breaker
  • Voltage: 230/400V
  • Breaking capacity: 10kA
  • Configuration: 1 pole + N
  • Type: B
  • Current rating: 1.6A

Selectable mandatory product

Accessories

Presentation video
Presentation video
Product video


Product

Manufacturer Material ID -
5SY4515-6
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121601

Technical Specification

Additional equipment possible -
Ambient temperature during operating -
-40 Degrees celsius
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Number of poles (total) -
2
Pollution degree -
3
Rated current -
1.6 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
250 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
10 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
35 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
35 kiloampere
Rated voltage -
230 Volt
Recess depth -
70 Millimetre
Tripping characteristic (type/curve) -
B
Voltage type -
AC
Width in number of modular spacings -
2

Availability On Request

£60.03
