5SY45258

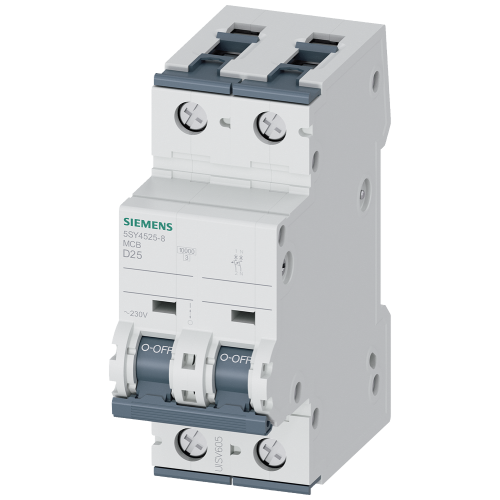

Miniature circuit breaker, 230 V, Icn: 10 kA 1P+N, Icu: 20 kA, D-Char, In: 25 A

Manufacturer's No: 5SY4525-8     Manufacturer: Siemens
Miniature circuit breaker, 230 V, Icn: 10 kA 1P+N, Icu: 20 kA, D-Char, In: 25 A

Availability On Request

£56.25
  • Miniature circuit breaker
  • Voltage: 230 V
  • Breaking capacity: 10 kA
  • Configuration: 1+N pole
  • Current rating: 25 A
  • Dimensions: 70 mm

Selectable mandatory product

Accessories

Presentation video
Presentation video
Product video


Product

Manufacturer Material ID -
5SY4525-8
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Current limiting class -
-
Built-in depth -
70 Millimetre
Release characteristic -
D
Degree of protection (IP) -
IP20
Rated impulse withstand voltage Uimp -
4 Kilovolt
Frequency -
50 Hertz
Over voltage category -
3
Degree of protection (IP rating) -
IP20
Number of protected poles -
1
Additional equipment possible -
Ambient temperature during operating -
-40 Degrees celsius
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Number of poles (total) -
2
Pollution degree -
3
Rated current -
25 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
250 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
10 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
20 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
20 kiloampere
Rated voltage -
230 Volt
Recess depth -
70 Millimetre
Tripping characteristic (type/curve) -
D
Voltage type -
AC
Width in number of modular spacings -
2

Availability On Request

£56.25
