5SY54087

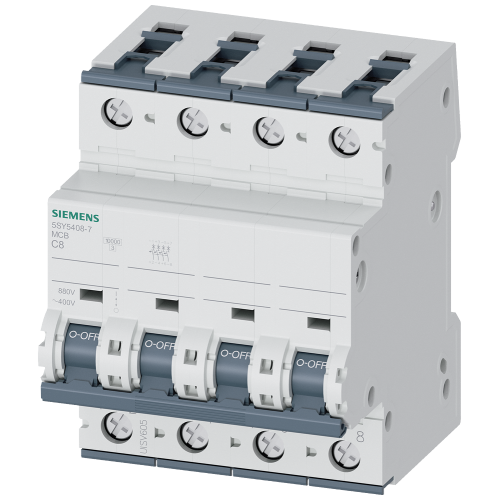

Miniature circuit breaker, 400 V, Icn: 10 kA, 4P, C-Char, In: 8 A, universal current, Un ...

Manufacturer's No: 5SY5408-7     Manufacturer: Siemens
Miniature circuit breaker, 400 V, Icn: 10 kA, 4P, C-Char, In: 8 A, universal current, Un ...

Availability On Request

£191.52
  • Circuit breaker: Universal current
  • Voltage: 880 V DC, 400 V AC
  • Maximum current: 10kA
  • Poles: 4
  • Type: C
  • Maximum current rating: 8A
  • Maximum voltage: 1000 V DC

Selectable mandatory product

Accessories

Spacer 0.5 MW

Product Code - 5TG8240
Price £4.88
On Request
Product video
Product video


Product

Manufacturer Material ID -
5SY5408-7
Net Weight -
0.61kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
39121601

Technical Specification

Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
- kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
- kiloampere
Built-in depth -
70 Millimetre
Release characteristic -
C
Degree of protection (IP) -
IP20
Rated impulse withstand voltage Uimp -
4 Kilovolt
Frequency -
50 Hertz
Over voltage category -
2
Degree of protection (IP rating) -
IP20
Number of protected poles -
4
Additional equipment possible -
Ambient temperature during operating -
-40 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Number of poles (total) -
4
Pollution degree -
2
Rated current -
8 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
10 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
10 kiloampere
Rated voltage -
400 Volt
Recess depth -
70 Millimetre
Tripping characteristic (type/curve) -
C
Voltage type -
AC/DC
Width in number of modular spacings -
4

Availability On Request

£191.52
