5SY60066

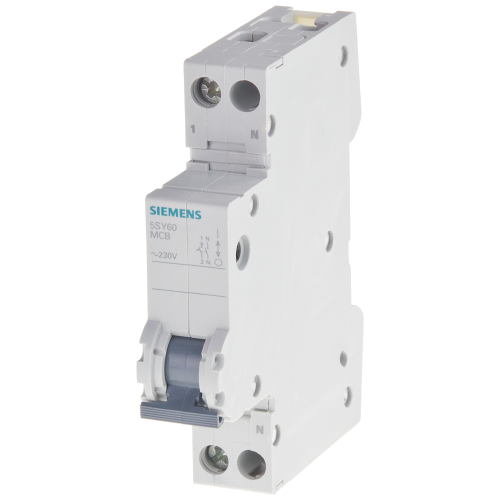

Miniature circuit breaker 230 V 6kA, 1+N-pole/1 MW, B 6 A

Manufacturer's No: 5SY6006-6     Manufacturer: Siemens
Miniature circuit breaker 230 V 6kA, 1+N-pole/1 MW, B 6 A

Availability On Request

POA

This product has been superseded by

5SL60066

Please check compatibility before purchasing.

  • Miniature circuit breaker
    • Voltage: 230 V
    • Breaking capacity: 6 kA
    • Configuration: 1+N pole/1 module width
    • Current rating: 6 A
    • End of product lifecycle: 19/11/21
    • Successor model: 5SL6006-6
    • Note: Different lever for RC-M
  • Contact local Siemens office for assistance


Product

Manufacturer Material ID -
5SY6006-6
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
RO
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
- kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
- kiloampere
Voltage type -
AC
Built-in depth -
70 Millimetre
Rated current -
6 Ampere
Rated voltage -
230 Volt
Frequency -
50 Hertz
Release characteristic -
B
Rated insulation voltage Ui -
250 Volt
Current limiting class -
3
Over voltage category -
3
Pollution degree -
2
Width in number of modular spacings -
1
Degree of protection (IP) -
IP20
Number of protected poles -
1
Concurrently switching N-neutral -
Connectable conductor cross section solid-core -
0.75 Square millimetre
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Ambient temperature during operating -
-25 Degrees celsius
Additional equipment possible -
Number of poles (total) -
2
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
6 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
6 kiloampere
Rated impulse withstand voltage Uimp -
4000 Kilovolt

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

5SL60066

Please check compatibility before purchasing.
