5SZ9206

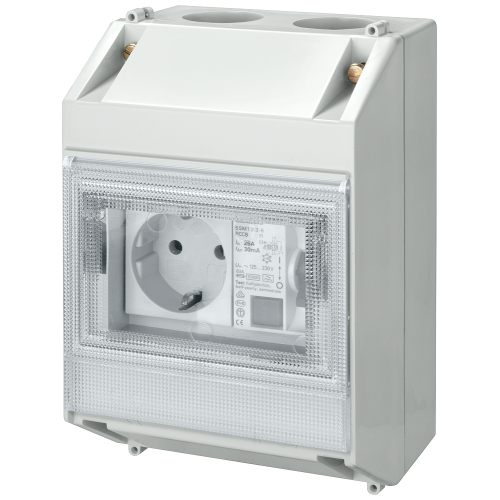

RC safety socket outlet T55 Type A (PSE/SSF) 16 A 1+N-pole IFN 10 mA 125-230 V 2 MW in molded-plasti

Manufacturer's No: 5SZ9206     Manufacturer: Siemens
RC safety socket outlet T55 Type A (PSE/SSF) 16 A 1+N-pole IFN 10 mA 125-230 V 2 MW in molded-plasti

Availability On Request

£373.93
  • RC safety socket outlet T55 Type A (PSE/SSF)
  • 16 A current rating
  • 1+N-pole configuration
  • 10 mA residual current sensitivity
  • Voltage range: 125-230 V
  • Enclosed in a molded-plastic enclosure
  • Power rating: 2 MW


Product

Manufacturer Material ID -
5SZ9206
Net Weight -
0.72kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
39121626

Technical Specification

RAL-number (akin) -
-
Number of modules (module system) -
-
Number of active Pins (round) -
-
Number of units -
1
Material quality -
Thermoplastic
Imprint/indication -
Without imprint
Impact strength -
Other
Surface finishing -
Glossy
Suitable for degree of protection (IP) -
IP54
Number of socket outlets switchable -
0
Number of active Pins (flat) -
1
Min. depth of built-in installation box -
95 Millimetre
Model -
Other
Protective contact -
Impact resistance (IK rating) -
Other
Protective earth pin round -
Colour -
Other
Connection type -
Screwless terminal
Degree of protection (IP rating) -
IP54
Depth of device -
95 Millimetre
Fault current protection -
Frequency -
50 Hertz
Halogen free -
Height of device -
180 Millimetre
Material -
Plastic
Material qualifier -
Thermoplastic
Minimum depth of back box -
95 Millimetre
Mounting method -
Surface mounted
Nominal current -
16 Ampere
Nominal voltage -
230 Volt
Number of active contacts (rectangular) -
1
Number of phases -
2
Number of switchable socket outlets -
0
Number of units/gangs -
1
Rated fault current -
10000 Milliampere
Special power supply -
No special power supply
Surface finish -
Glossy
Surface protection -
Other
Type of fastening -
Mounting with screw
Width of device -
119 Millimetre
With hinged lid -
With loop through function -
With on/off switch -
