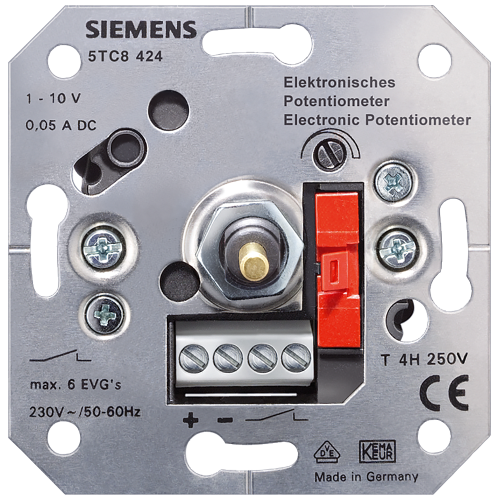

5TC8424

FM ELECTRON.POT. 1-10V 6A

Manufacturer's No: 5TC8424     Manufacturer: Siemens
FM ELECTRON.POT. 1-10V 6A

Availability On Request

POA
  • Electronic potentiometer with pushbutton off switch
  • Input: 1-10V control
  • Output: 6A
  • Current: 0.04A
  • Screw terminals for claw and screw mounting
Instructional video


Product

Manufacturer Material ID -
5TC8424
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121603

Technical Specification

Assembly arrangement -
Basic unit
Nominal voltage -
230 Volt
Assembly -
Basic unit
Colour -
Other
Core cross section -
0.5 Square millimetre
Degree of protection (IP rating) -
IP20
Depth of device -
35 Millimetre
Dimming trailing edge -
Frequency -
50 Hertz
Halogen free -
Height of device -
70 Millimetre
Material -
Metal
Max. switching power LED -
2 Watt
Method of operation -
Turn/push button
Minimum depth of back box -
32 Millimetre
Nominal power capacitive load -
0 Voltampere
Nominal power inductive load -
0 Voltampere
Nominal power resistive load -
0 Watt
Number of module spaces (modular system) -
1
Surface protection -
Other
Type of load -
Capacitive load
Width of device -
70 Millimetre

Availability On Request

POA
