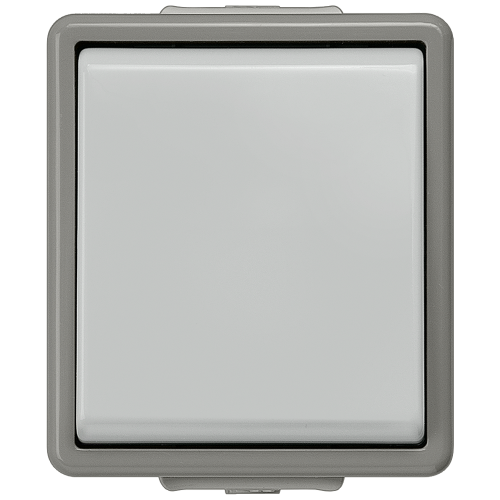

5TD4707

DELTA flaeche IP44, AP Dark gray/light gray button, 10A 250V, 1 change-over contact can be used as N

Manufacturer's No: 5TD4707     Manufacturer: Siemens
DELTA flaeche IP44, AP Dark gray/light gray button, 10A 250V, 1 change-over contact can be used as N

Availability On Request

POA
  • DELTA flaeche IP44
  • Dark gray/light gray button
  • 10A 250V
  • 1 change-over contact (can be used as N or NC contact)
  • Dimensions: 66 x 75 mm
Instructional video
Product video
Instructional video


Product

Manufacturer Material ID -
5TD4707
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
ES
Export Control Regulations -
N / N
UNSPSC -
39121601

Technical Specification

Assembly arrangement -
Basic unit fully enclosed
RAL-number (similar) -
7035
Assembly -
Basic unit fully enclosed
Colour -
Grey
Connection type -
Screwless terminal
Degree of protection (IP rating) -
IP44
Depth of device -
54 Millimetre
Halogen free -
Height of device -
75 Millimetre
Imprint -
None
Material -
Plastic
Material qualifier -
Other
Method of operation -
Push button/touch control button
Model -
Single push button
Mounting method -
Surface mounted
Nominal voltage -
230 Volt
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of revolving contacts -
0
Number of rockers/gangs -
1
Rated current -
10 Ampere
Surface finish -
Glossy
Surface protection -
Other
Type of fastening -
Screw mounting
Width of device -
66 Millimetre

Availability On Request

POA
