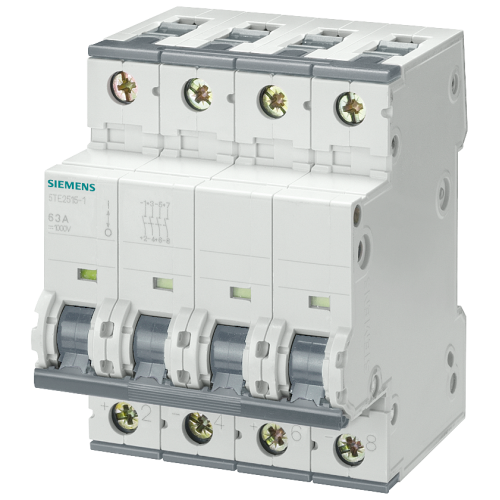

5TE25151

DC isolators 1000 V DC, 63A

Manufacturer's No: 5TE2515-1     Manufacturer: Siemens
DC isolators 1000 V DC, 63A

Availability Back Order

£229.86
  • DC isolators
  • Voltage: 1000 V DC
  • Current: 63A

Accessories



Product

Manufacturer Material ID -
5TE2515-1
Net Weight -
0.65kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
39121601

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Rated operation power at AC-23, 400 V -
- Kilowatt
Max. rated operation voltage Ue AC -
- Volt
Switching power at 400 V -
- Kilowatt
Rated permanent current at AC-23, 400 V -
- Ampere
Suitable for intermediate mounting -
Device construction -
Complete device in housing
Degree of protection (NEMA) -
Other
Colour control element -
Grey
Degree of protection (IP), front side -
IP20
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
4
Number of poles -
4
Number of switches -
1
Rated permanent current at AC-21, 400 V -
63 Ampere
Rated permanent current Iu -
63 Ampere
Rated short-time withstand current lcw -
0.756 kiloampere
Suitable for distribution board installation -
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection
Voltage release optional -

Availability Back Order

£229.86
