5TE8218

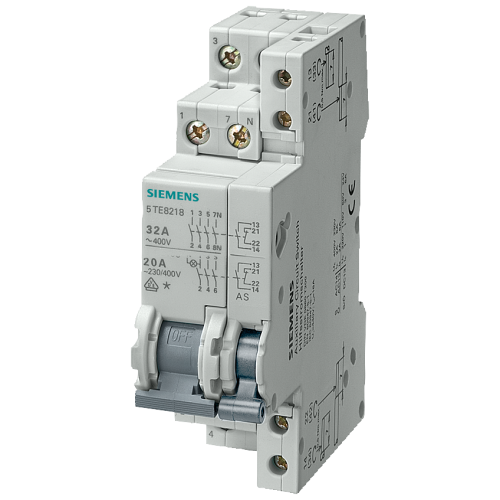

OFF switch 32 A 3 NO+N Terminal 6 mm2 with auxiliary current switch 1 NO + 1 NC

Manufacturer's No: 5TE8218     Manufacturer: Siemens
OFF switch 32 A 3 NO+N Terminal 6 mm2 with auxiliary current switch 1 NO + 1 NC

Availability On Request

£171.77
  • Switch disconnector
  • On-off switch
  • 32A current rating
  • 3 normally open (NO) + neutral (N) terminals
  • Terminal capacity: 6mm²
  • Includes auxiliary switch: 1 normally open (NO) + 1 normally closed (NC) contacts

Component part



Product

Manufacturer Material ID -
5TE8218
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
RO
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Max. lamp power -
- Watt
Min. rated voltage -
- Volt
Number of contacts as normally closed contact -
-
Number of contacts as change-over contact -
-
Built-in depth -
70 Millimetre
Lamp type -
Other
Colour calotte -
Other
Degree of protection (IP) -
Other
Light source type -
Other
Colour light source -
Other
Lamp socket -
Other
Degree of protection (IP rating) -
Other
Number of contacts as normally open contact -
3
Number of poles -
1
Rated current -
32 Ampere
Rated switching capacity -
0.096 kiloampere
Rated voltage -
400 Volt
Recess depth -
70 Millimetre
Short-circuit breaking capacity (Icw) -
10 kiloampere
Switching function -
Off switch
Voltage type -
AC
Width in number of modular spacings -
1.5

Availability On Request

£171.77
