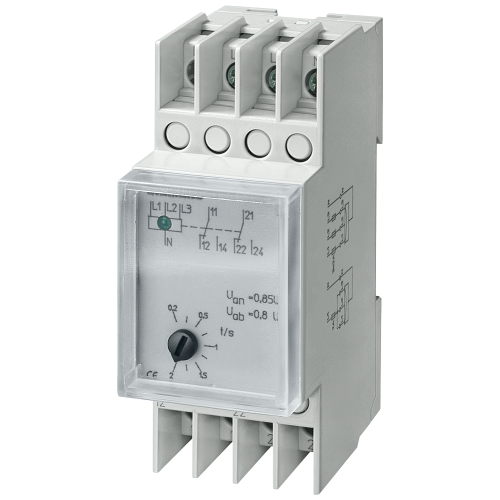

5TT3407

Voltage relays AC 230/400V 2CO short-time 20 ms With transparent cap

Manufacturer's No: 5TT3407     Manufacturer: Siemens
Voltage relays AC 230/400V 2CO short-time 20 ms With transparent cap

Availability On Request

£380.00
  • Voltage relays for AC 230/400V
  • 2CO (2 changeover) configuration
  • Short-time delay of 20 ms
  • Equipped with transparent cap


Product

Manufacturer Material ID -
5TT3407
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Voltage measurement range 2 -
- Volt
Max. permitted delay-on energization time -
- Second
Max. permitted off-delay time -
- Second
Number of contacts as normally open contact -
-
Rated control supply voltage Us at AC 50HZ -
230 Volt
Rated control supply voltage Us at AC 60HZ -
230 Volt
Rated control supply voltage at AC 50 Hz -
230 Volt
Rated control supply voltage at AC 60 Hz -
230 Volt
Voltage type for actuating -
AC
Number of contacts as normally closed contact -
0
Depth -
64 Millimetre
Height -
90 Millimetre
Min. adjustable delay-on energization time -
0.85 Second
Min. adjustable off-delay time -
0.8 Second
Number of contacts as change-over contact -
2
Response value voltage -
161 Volt
Three-phase under voltage possible -
Type of electric connection -
Screw connection
Type of voltage measurement range -
AC
Voltage measurement range 1 -
253 Volt
Width -
36 Millimetre

Availability On Request

£380.00
