5TT3414

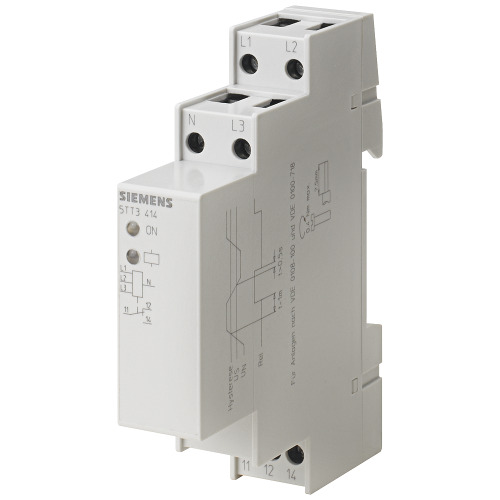

Voltage relay 230/400 V AC 0.85 1 changeover contact response delay 0.5 s

Manufacturer's No: 5TT3414     Manufacturer: Siemens
Voltage relay 230/400 V AC 0.85 1 changeover contact response delay 0.5 s

Availability On Request

£262.12
  • Voltage relays for AC 230/400V
  • 1 CO contact
  • Response delay: 0.5 seconds
  • Return transfer delay: 60 seconds


Product

Manufacturer Material ID -
5TT3414
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121601

Technical Specification

Voltage measurement range 2 -
- Volt
Voltage type for actuating -
UN
Rated control supply voltage Us at AC 50HZ -
195.5 Volt
Rated control supply voltage Us at AC 60HZ -
195.5 Volt
Depth -
64 Millimetre
Height -
90 Millimetre
Min. adjustable off-delay time -
0.85 Second
Number of contacts as change-over contact -
1
Response value voltage -
195.5 Volt
Single-phase under voltage possible -
Three-phase under voltage possible -
Type of electric connection -
Screw connection
Type of voltage measurement range -
AC
Voltage measurement range 1 -
195.5 Volt
Width -
18 Millimetre

Availability On Request

£262.12
