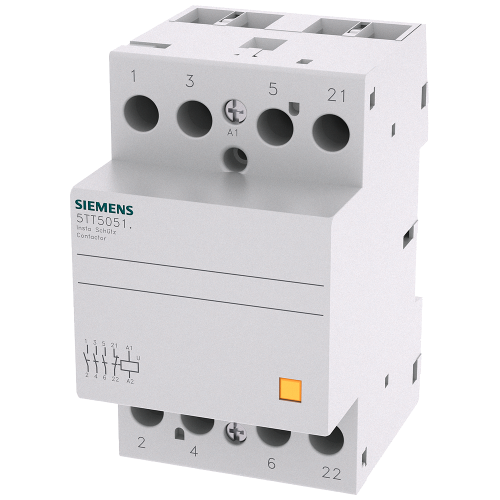

5TT50512

INSTA contactor with 3 NO contacts and 1 NC, contact for 230 V, 400 V AC 63 A activation 24 V

Manufacturer's No: 5TT5051-2     Manufacturer: Siemens
INSTA contactor with 3 NO contacts and 1 NC, contact for 230 V, 400 V AC 63 A activation 24 V AC/DC

Availability On Request

£251.74
  • Contact Configuration: 3 NO contacts, 1 NC contact
  • Voltage: 230V AC, 24V DC
  • Current Rating: 63A
  • Control Voltage: 400V AC

Accessories

Spacer 0.5 MW

Product Code - 5TG8240
Price £4.88
On Request


Product

Manufacturer Material ID -
5TT5051-2
Net Weight -
0.43kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
SI
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121601

Technical Specification

Utility category -
-
Built-in depth -
64 Millimetre
Number of modular spacings -
3
Degree of protection (IP) -
IP20
Additional equipment possible -
Degree of protection (IP rating) -
IP20
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
3
Rated excitation voltage -
24 Volt
Rated operating voltage -
400 Volt
Rated operation current -
63 Ampere
Recess depth -
64 Millimetre
Voltage type (excitation voltage) -
AC/DC
Voltage type (operating voltage) -
AC
Width in number of modular spacings -
3

Availability On Request

£251.74
