2CKA006132A0399

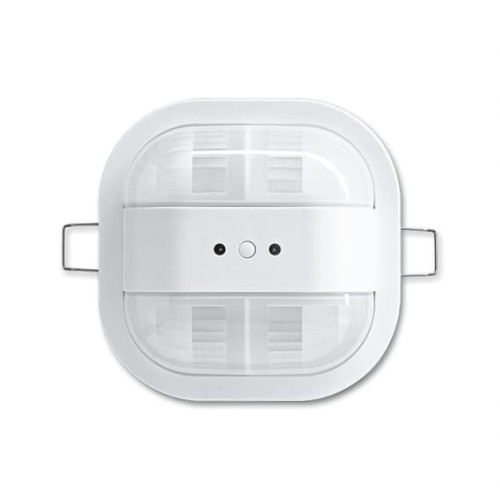

6131/50-24-500 KNX Presence Cor. W

Manufacturer's No: 6131/50-24-500     Manufacturer: ABB
6131/50-24-500 KNX Presence Cor. W

Availability On Request

£240.28
  • Model: 6131/50-24-500 KNX Presence Cor. W
  • Detection range: rectangular
  • Mounting height: 3m
  • Frontal detection range: up to 20m x 3m
  • Side detection range: up to 10m x 3m
  • Crosswise detection range: up to 30m x 3m
  • Side crosswise detection range: up to 15m x 3m
  • Integrated KNX bus coupler
  • Mounting height: 27mm
  • 2 channels for light bands control

Read more

  • Presence and movement detection capabilities
  • 2 power off stages
  • Integrated monitoring function
  • Constant light switch with 2 independent channels
  • 2 outputs for brightness-dependent switching
  • Ceiling mounting on suspended ceilings or solid ceilings
  • Suitable for false ceilings (9-25mm thickness)
  • Hole size: Ø 68mm
  • Not compatible with British Standard or VDE flush-mounted boxes
  • Recommended installation housing: Kaiser HaloX-O (Art.no. 1281-00) with corresponding cover plates or IBTronic H120-68 from Spelsberg.


Product

Manufacturer Material ID -
6131/50-24-500
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
UNSPSC -
43201503

Technical Specification

Switching power -
- Watt
Number of binary inputs -
-
Diameter detection range on floor -
- Metre
Detection angle vertical -
- Degrees
Detection angle horizontal -
- Degrees
Material quality -
Thermoplastic
Max. transmission range frontally -
10 Metre
Max. transmission range sideways -
15 Metre
Substation input -
RAL-number (akin) -
9016
Surface finishing -
Matt
Max. reach frontally -
10 Metre
Auxiliary input -
Bus system KNX -
Colour -
White
Creep-under protection -
Depth -
49 Millimetre
Height -
91 Millimetre
Material -
Plastic
Material qualifier -
Thermoplastic
Max. duty cycle -
1092 Minute
Min. switch-on time -
10 Second
Minimum depth of back box -
22 Millimetre
Model -
Presence detector
Mounting method -
Flush mounted
Number of channels -
2
Optimum mounting height -
2 Metre
Other bus systems -
None
RAL-number (similar) -
9016
Recess depth -
22 Millimetre
Response value luminosity adjustable -
Staircase monitoring -
Surface finish -
Matt
Surface protection -
Untreated
Teach-function for response value luminosity -
Width -
91 Millimetre
ABB

Availability On Request

£240.28
