2CKA006132A0413

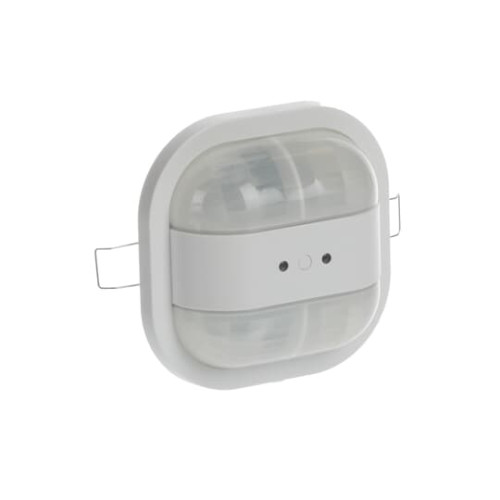

6131/51-24-500 KNX Presence Cor. Prem. W

Manufacturer's No: 6131/51-24-500     Manufacturer: ABB
6131/51-24-500 KNX Presence Cor. Prem. W

Availability On Request

£300.72
  • KNX Presence Corridor Premium W with integrated KNX bus coupler
  • Detection range: rectangular shape
  • Mounting height: 3m
  • Frontal detection range: up to 20m x 3m (10m x 3m per side)
  • Crosswise detection range: up to 30m x 3m (15m x 3m per side)
  • Mounting height: 27mm
  • 4 channels for dimming/brightness control in designated area
  • HVAC function for heating, cooling, and ventilation control
  • 2 power off stages for detectors application
  • Integrated monitoring function

Read more

  • Constant light controller with 2 independent channels
  • Max. 2 outputs for dimming daylight control/rules of two rooflights
  • Integrated object room temperature controller
  • 10 programmable IR channels (blue and/or white)
  • 5 logic channels for gates, delay, and staircase lighting
  • Evaluation via internal brightness sensor
  • Weighting of up to 2 external brightness values and internal sensor
  • Programming button activated with IR transmitter 6010-25 (-500)
  • Ceiling mounting on suspended ceilings with spring clamps or solid ceilings in surface-mounting boxes
  • Suitable for false ceilings with board thickness from 9 to 25mm
  • Hole size: Ø 68mm
  • Not compatible with British Standard or VDE flush-mounted boxes
  • Recommended installation housing: Kaiser HaloX-O (Art.no. 1281-00) with corresponding cover plates (1281-xx for fair faced concrete) or IBTronic H120-68 from Spelsberg.


Product

Manufacturer Material ID -
6131/51-24-500
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Switching power -
- Watt
Number of binary inputs -
-
Diameter detection range on floor -
- Metre
Detection angle vertical -
- Degrees
Detection angle horizontal -
- Degrees
Material quality -
Thermoplastic
Max. transmission range frontally -
10 Metre
Max. transmission range sideways -
15 Metre
Substation input -
RAL-number (akin) -
9016
Surface finishing -
Matt
Max. reach frontally -
10 Metre
Auxiliary input -
Bus system KNX -
Colour -
White
Creep-under protection -
Depth -
49 Millimetre
Height -
91 Millimetre
Material -
Plastic
Material qualifier -
Thermoplastic
Max. duty cycle -
1092 Minute
Min. switch-on time -
10 Second
Minimum depth of back box -
22 Millimetre
Model -
Presence detector
Mounting method -
Flush mounted
Number of channels -
4
Optimum mounting height -
2 Metre
Other bus systems -
None
RAL-number (similar) -
9016
Recess depth -
22 Millimetre
Response value luminosity adjustable -
Staircase monitoring -
Surface finish -
Matt
Surface protection -
Untreated
Teach-function for response value luminosity -
Width -
91 Millimetre
ABB

Availability On Request

£300.72
