2CPX062951R9999

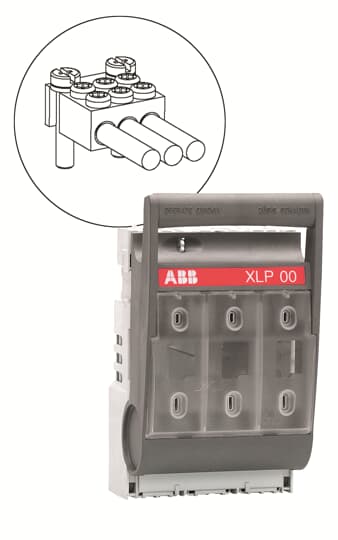

ZH415 Protective devices, 100 mm x 115 mm x 170 mm, IP30

Manufacturer's No: 62951     Manufacturer: ABB
ZH415 Protective devices, 100 mm x 115 mm x 170 mm, IP30

Availability On Request

£489.40
  • ZH415 Protective devices
  • Dimensions: 100 mm x 115 mm x 170 mm
  • IP30 rating
  • Fuse switch disconnector NH00
  • Rated current (In) max. 160 A
  • Triple terminals up to 10 mm²
  • Suitable for installation on busbar systems with EDF mounting frame
  • Compatible with Cu 12 x 5 mm or Cu 12 x 10 mm busbars
  • Busbar distance: 40 mm


Product

Manufacturer Material ID -
62951
Net Weight -
1.25kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
NO
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Cable entry -
Other
Conditioned rated short-circuit current Iq -
50 kiloampere
Max. rated operation voltage Ue AC -
400 Volt
Number of poles -
3
Position control element -
Front
Rated permanent current Iu -
160 Ampere
Rated short-time withstand current lcw -
50 kiloampere
Suitable for busbar mounting -
Suitable for fuses -
NH00
Type of control element -
Cover grip
Type of electrical connection of main circuit -
Cable clamp
Version as main switch -
ABB
