630809

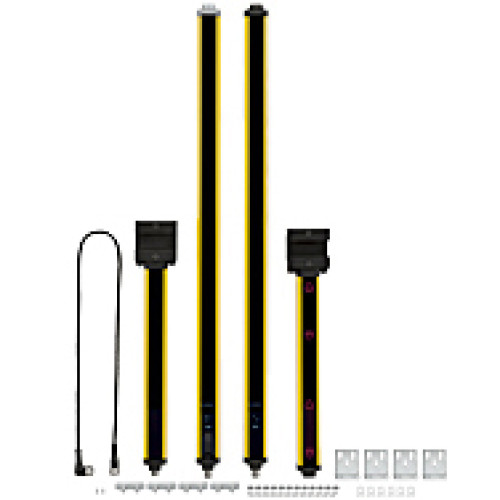

Set of light curtain, bracket and Muting arm L-type in accordance with DIN EN 61496, type 4, 800 mm Supply voltage 24 V, connector

Manufacturer's No: PSEN op4B-L-080/1     Manufacturer: Pilz
Set of light curtain, bracket and Muting arm L-type in accordance with DIN EN 61496, type 4, 800 mm Supply voltage 24 V, connector M12.

Availability On Request

£1,660.46
  • Light guard set (Type 4, PL e) for body protection
  • Bracket and muting arm L-type in accordance with DIN EN 61496
  • Guard height: 800 mm
  • Connector type: M12
  • Transmitter connectors: 4-pin and 5-pin
  • Receiver connectors: 5-pin and 8-pin
  • Connection cable not included


Product

Manufacturer Material ID -
PSEN op4B-L-080/1
Net Weight -
5.70kg

Additional Product Information

Commodity Code -
90314990
Country of Origin -
HU
UNSPSC -
41111926

Technical Specification

Number of semiconductor outputs with signalling function -
0
Ambient temperature -
-10 Degrees celsius
Height -
953 Millimetre
Length -
41.2 Millimetre
Max. output current at protected output -
500 Milliampere
Model -
Transmitter and receiver separated
Number of beams -
3
Number of protected semiconductor outputs -
2
Reaction time -
14 Millisecond
Scope of delivery of the one-way system -
Transmitter and receiver
Transmission range of the safety field -
3 Metre
Type of safety acc. IEC 61496-1 -
4
Voltage type -
DC
Width -
35 Millimetre
