631010

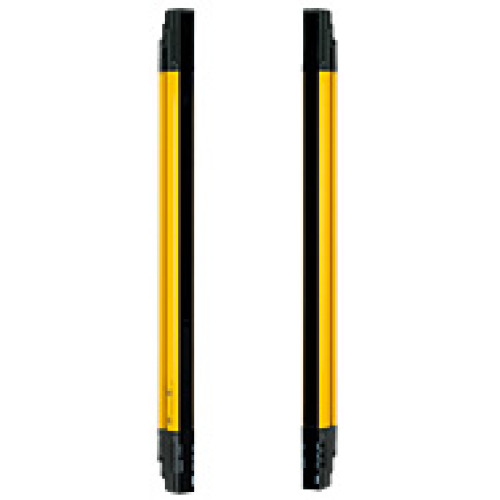

Safety light guard, Type 4, PL e finger protection (resolution 14 mm), protected field height 1800 mm. Features: Muting, blanking,

Manufacturer's No: PSEN op4F-A-14-180/1     Manufacturer: Pilz
Safety light guard, Type 4, PL e finger protection (resolution 14 mm), protected field height 1800 mm. Features: Muting, blanking, cascading, absence of dead zones. Programming is possible via Softw

Availability Back Order

£6,501.38
  • Safety light guard Type 4 with PL e finger protection (resolution 14 mm)
  • Protected field height of 1800 mm
  • Features: Muting, blanking, cascading, absence of dead zones
  • Programming possible via Software PSENoptConfigurator or directly on the light guard
  • Supply voltage: 24 V
  • Connection via 18-pin pigtail cable on M12 connector
  • Connector types: M12 transmitter (5-pin), receiver (blanking 12-pin, muting 12-pin/5-pin)
  • Pigtail cables not included

Mandatory additional product



Product

Manufacturer Material ID -
PSEN op4F-A-14-180/1
Net Weight -
8.20kg

Additional Product Information

Commodity Code -
90314990
Country of Origin -
HU
UNSPSC -
41111926

Technical Specification

Width -
35 Millimetre
Model -
Transmitter and receiver separated
Height -
1800 Millimetre
Length -
40.8 Millimetre
Number of semiconductor outputs with signalling function -
0
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of beams -
192
Type of switching output of the OSSD -
PNP/NPN
Type of electric connection -
Connector M12
Override possible -
Switching voltage of OSSD at state "high" -
24 Volt
Beam spacing -
14 Millimetre
With beam coding -
Wavelength of the sensor -
950 Nanometre
Ambient temperature -
0 Degrees celsius
Cascadable -
Degree of protection (IP rating) -
IP65
Fade-out possible -
Height of sensor -
1806.3 Millimetre
Length of sensor -
40.8 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
33 Millisecond
Resolution of the light curtain -
14 Millimetre
Safety field height -
1800 Millimetre
Scope of delivery of the one-way system -
Transmitter and receiver
Transmission range of the safety field -
7 Metre
Type of safety acc. IEC 61496-1 -
4
Voltage type -
DC
Width sensor -
35 Millimetre
With muting function -
Pilz
